Headliner Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    11. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    12. Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
    13. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    14. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    15. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    16. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    17. Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    18. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    19. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    20. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    21. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the roof wiring harness connector and remove the roof wiring harness connector clips from the body.
  4. Disconnect rear washer hose C. (See REAR WASHER HOSE REMOVAL/INSTALLATION .)

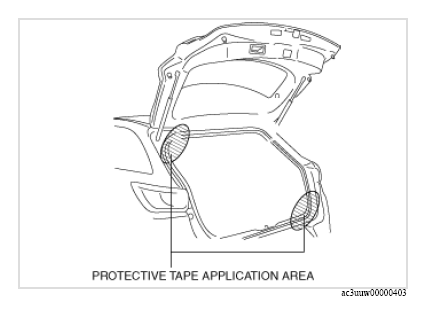

  5. Affix protective tape to the position shown in the figure.
    G13152825Courtesy of MAZDA MOTORS CORP.
  6. Fully recline the front seats.

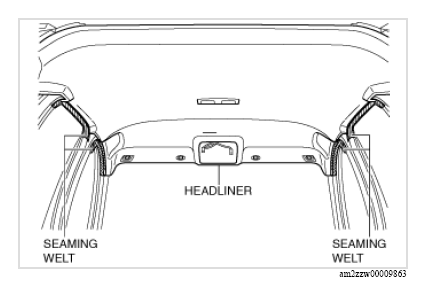

  7. Temporarily install the seaming welts shown in the figure to the headliner.
    CAUTION:
    • If the fasteners are removed without temporarily installing the seaming welts, the headliner may fall off and the part may be damaged. Before removing the fasteners, temporarily install the seaming welts to prevent the headliner from falling off.
    G13152826Courtesy of MAZDA MOTORS CORP.

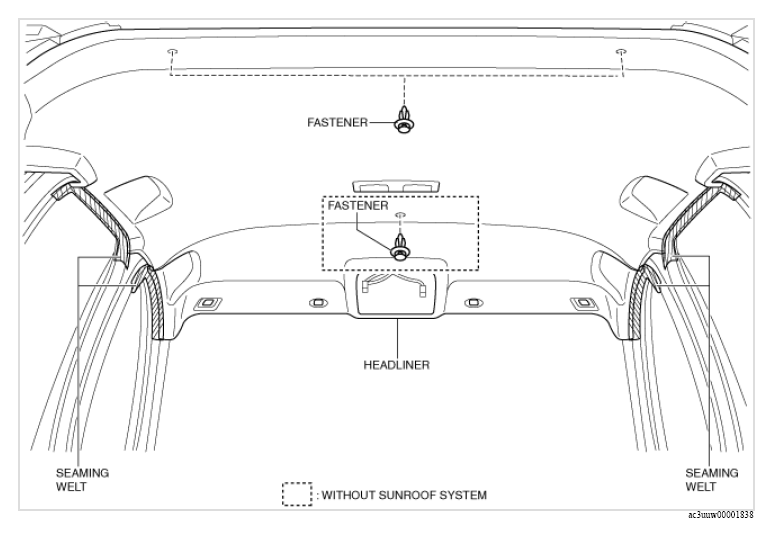

  8. Remove the fasteners.
    G13152827Courtesy of MAZDA MOTORS CORP.
  9. Peel back the seaming welts and place the headliner on the seats.

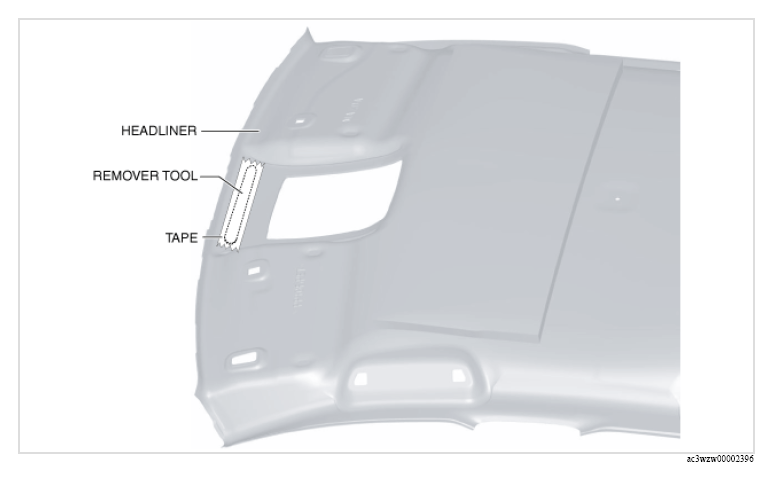

  10. Affix the remover tool to the position shown in the figure using tape.
    G13152828Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Affix the remover tool so that the headliner can be removed without making a fold-seam in the headliner.

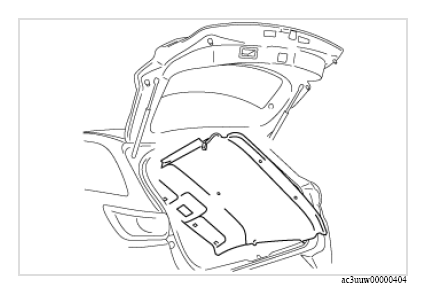

  11. Take the headliner out from the opened liftgate.
    G13152829Courtesy of MAZDA MOTORS CORP.
  12. Install in the reverse order of removal.
