A-Pillar Trim Removal/Installation

  1. Partially peel back the seaming welt.

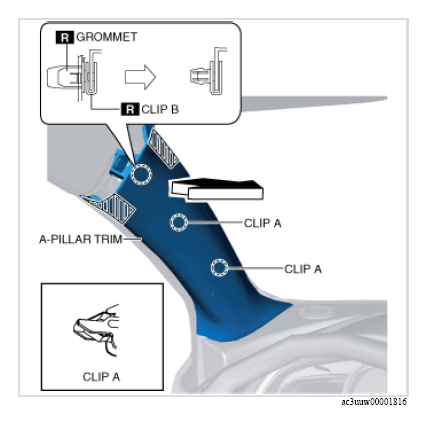

  2. Grasp the shaded areas shown in the figure, and pull the A-pillar trim in the direction of the arrow while detaching clips A, clip B.
    G13152718Courtesy of MAZDA MOTORS CORP.

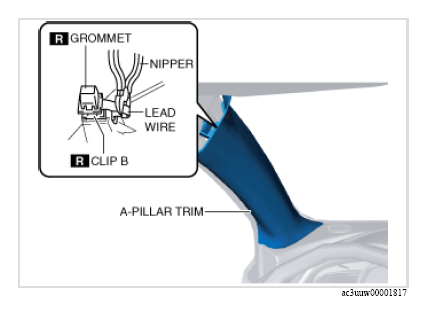

  3. Cut the lead wire connecting clip B and grommet using a nipper.
    G13152719Courtesy of MAZDA MOTORS CORP.

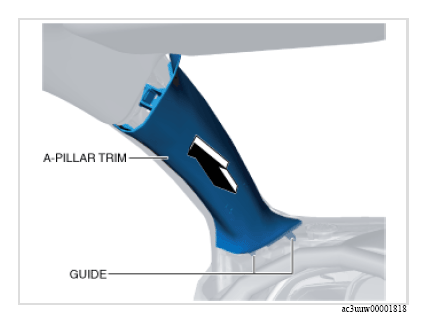

  4. Pull the A-pillar trim in the direction of the arrow shown in the figure while detaching the guides.
    G13152720Courtesy of MAZDA MOTORS CORP.

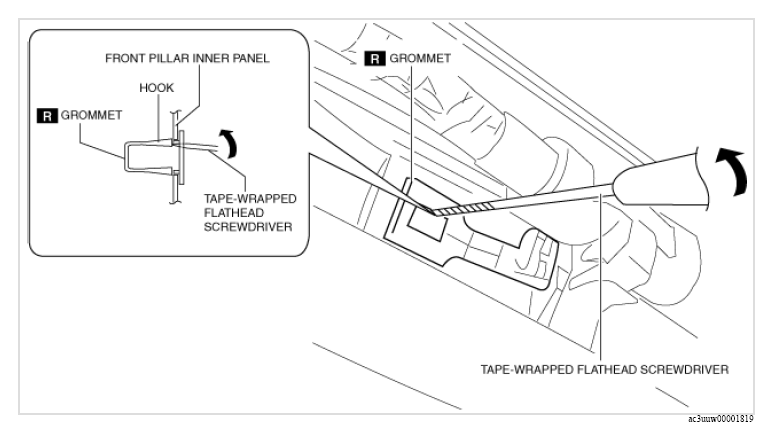

  5. Move the hook in the direction of arrow shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.
    G13152721Courtesy of MAZDA MOTORS CORP.

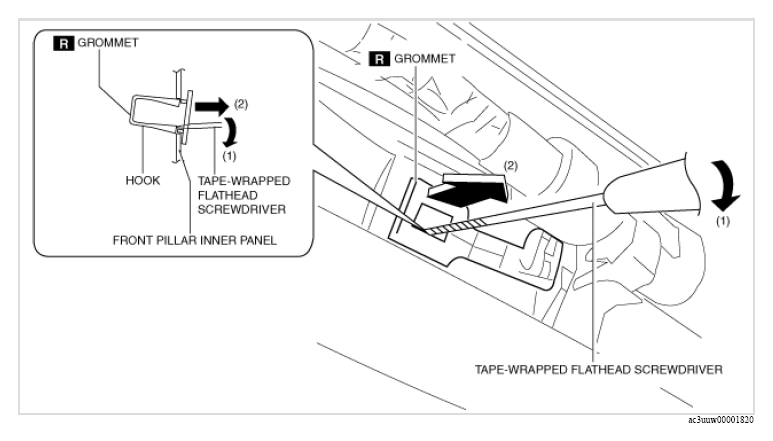

  6. Move the hook in the direction of arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.
    G13152722Courtesy of MAZDA MOTORS CORP.
  7. Remove the grommet in the direction of arrow (2) shown in the figure.
  8. When installing the A-pillar, install new clips B and grommet to the A-pillar trim in advance.
  9. Install in the reverse order of removal.
