Trunk Covering Removal/Installation

  1. Remove the trunk board. (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)

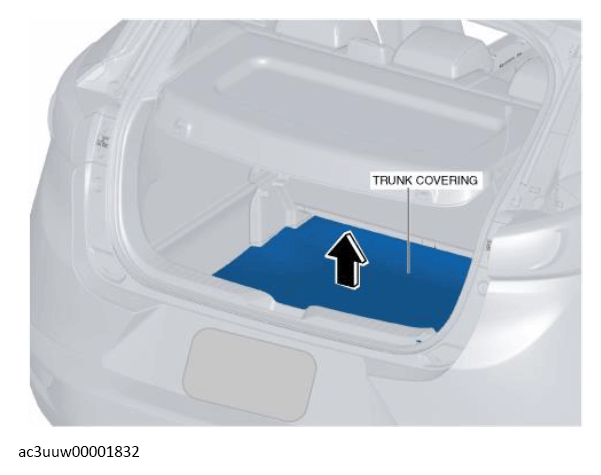

  2. Remove the trunk covering in the direction of the arrow shown in the figure.
    G13152915Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
