Rear Differential Assembly: Notes
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- To prevent silicone sealant from hardening, adhere the rear cover to the differential carrier within 3 min after silicone sealant is applied.
- Allow the sealant to set at least 30 min or more after installation before filling the differential with differential oil.

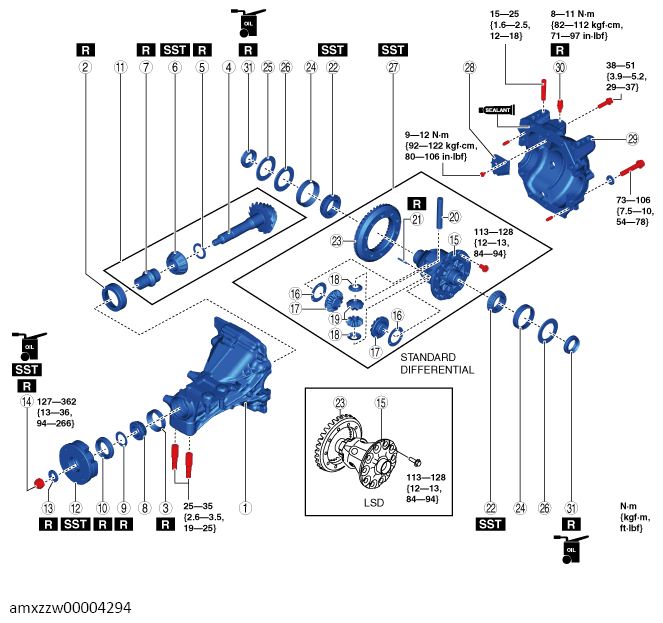

- Assemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Differential carrier |
| 2 |
Rear bearing outer race
(See Rear Bearing Outer Race, Front Bearing Outer Race Assembly Note .) |
| 3 |
Front bearing outer race
(See Rear Bearing Outer Race, Front Bearing Outer Race Assembly Note .) |
| 4 |
Drive pinion |
| 5 |
Spacer
(See Spacer, Rear Bearing Assembly Note .) |
| 6 |
Rear bearing
(See Spacer, Rear Bearing Assembly Note .) |
| 7 |
Collapsible spacer |
| 8 |
Front bearing |
| 9 |
Spacer |
| 10 |
Oil seal (companion flange)
(See Oil Seal (Companion Flange), Drive Pinion Component, Locknut Assembly Note .) |
| 11 |
Drive pinion component
(See Oil Seal (Companion Flange), Drive Pinion Component, Locknut Assembly Note .) |
| 12 |
Companion flange |
| 13 |
Washer |
| 14 |
Locknut
(See Oil Seal (Companion Flange), Drive Pinion Component, Locknut Assembly Note .) |
| 15 |
Differential gear case |
| 16 |
Thrust washer
(See Thrust Washer, Spring Pin Assembly Note .) |
| 17 |
Side gear |
| 18 |
Washer |
| 19 |
Pinion gear |
| 20 |
Pinion shaft |
| 21 |
Spring pin
(See Thrust Washer, Spring Pin Assembly Note .) |
| 22 |
Side bearing
(See Side Bearing Assembly Note .) |
| 23 |
Ring gear
(See Ring Gear Assembly Note .) |
| 24 |
Side bearing outer race |
| 25 |
Spacer
(See Spacer, Adjustment Shim, Differential Gear Case Component Assembly Note .) |
| 26 |
Adjustment shim
(See Spacer, Adjustment Shim, Differential Gear Case Component Assembly Note .) |
| 27 |
Differential gear case component
(See Spacer, Adjustment Shim, Differential Gear Case Component Assembly Note .) |
| 28 |
Baffle plate |
| 29 |
Rear cover
(See Rear Cover Assembly Note .) |
| 30 |
Breather |
| 31 |
Oil seal (side gear)
(See Oil Seal (Side Gear) Assembly Note .) |
