Thrust Washer, Spring Pin Assembly Note
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble the following parts to the differential gear case.
- Side gear
- Thrust washer
- Pinion gear
- Washer
- Pinion shaft
- Align the differential gear case and pinion shaft pin holes.

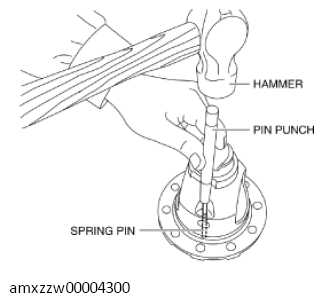

- Tap the spring pin in using a pin punch and a hammer.

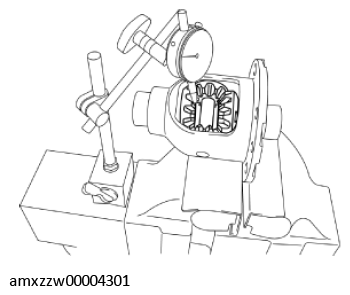

- Install a dial gauge with the measuring probe of the dial gauge attached perpendicularly to the end of one of the pinion gear teeth.
- Secure one of the side gears.
- Move the pinion gear and measure the backlash at the pinion gear top.
Pinion gear and side gear backlash
0.1 mm {0.004 in} or less
- If not within the standard, adjust by choosing the proper thrust washer.
Thrust Washer table
Determination mark Thickness (mm {IN}) 75 0.75 {0.030} 80 0.80 {0.031} 85 0.85 {0.033} 90 0.90 {0.035} 95 0.95 {0.037}
