Side Bearing Assembly Note

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not mix the left and right side bearings.

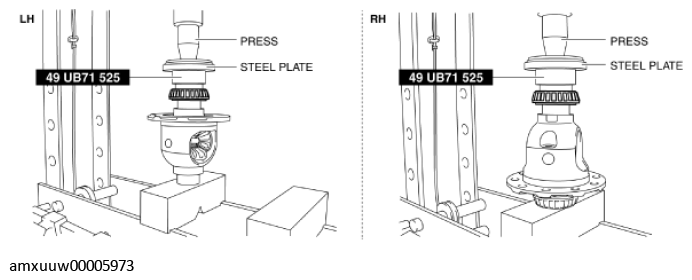

  1. Press fit the side bearing using the SST, a press, and a steel plate.
    G11273941Courtesy of MAZDA MOTORS CORP.
