Rear Cover Assembly Note

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Clean the contact surfaces of the differential carrier and rear cover.
CAUTION:
- Do not apply pressure of 2 t or more with the press. Otherwise, the part may become damaged.
- For safety purposes, support the differential carrier using a wood block and level the end of the side bearing before performing the procedure.

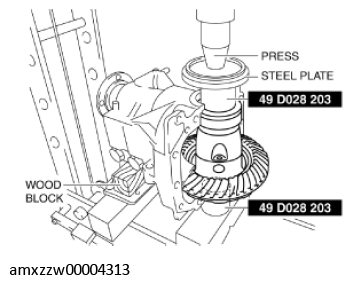

Apply pressure to the differential gear case component, adjustment shim, and spacer using the SSTs, a press, and a steel plate.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- To prevent silicone sealant from hardening, adhere the rear cover to the differential carrier within 3 min after applying silicone sealant.

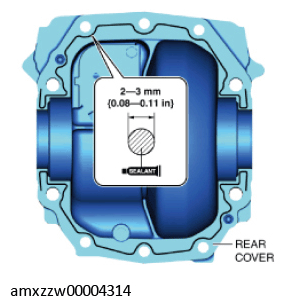

Apply silicone sealant (TB1217C) to the positions shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install the rear cover to the differential carrier.
