Ring Gear Assembly Note
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

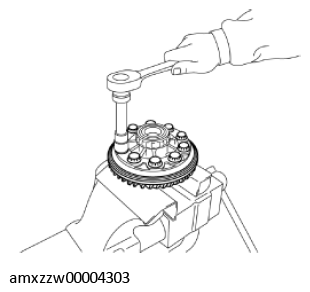

- Install the ring gear to the differential gear case and tighten the bolts in a criss-cross pattern.
 Courtesy of MAZDA MOTORS CORP.
|
Tightening torque
113-128 N.m {12-13 kgf.m, 84-94 ft.lbf}
