Intake-Air System Removal/Installation: Notes
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION

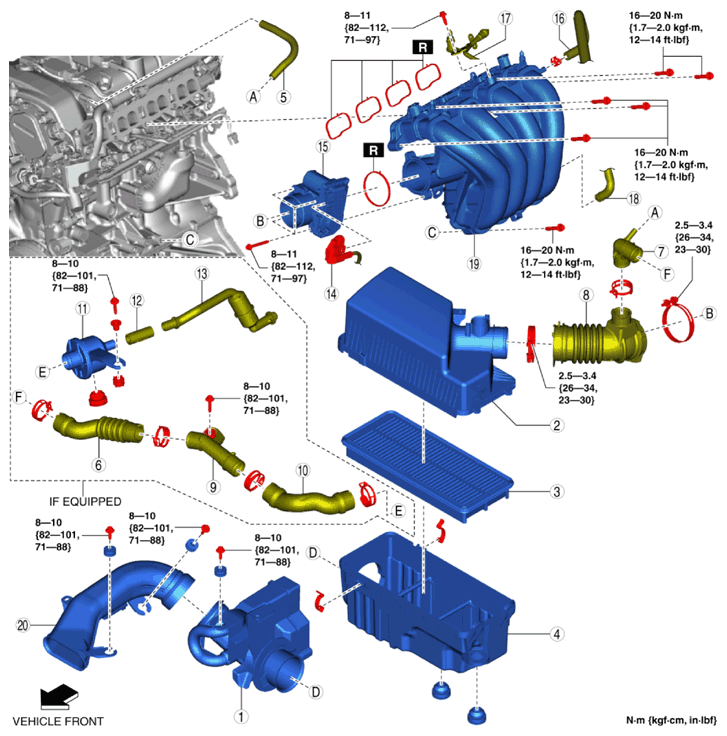

| 1 | Resonance chamber No. 1 (See Resonance Chamber No. 1 Removal Note .) (See Resonance Chamber No. 1 Installation Note .) |
| 2 | Air cleaner cover (See Air Cleaner Cover Installation Note .) |
| 3 | Air cleaner element |
| 4 | Air cleaner case (See Air Cleaner Case Installation Note .) |
| 5 | Ventilation hose (See Ventilation Hose Installation Note .) |
| 6 | Air intake hose No. 1 (See Air Intake Hose No. 1 Installation Note .) |
| 7 | Joint pipe (See Joint Pipe Installation Note .) |
| 8 | Air hose (See Air Hose Installation Note .) |
| 9 | Resonance duct |
| 10 | Air intake hose No. 2 (See Air Intake Hose No. 2 Installation Note .) |
| 11 | Resonance chamber No. 2 |
| 12 | Air intake hose No. 3 (See Air Intake Hose No. 3 Installation Note .) |
| 13 | Air intake pipe |
| 14 | Throttle body connector |
| 15 | Throttle body |
| 16 | Vacuum hose (See vacuum hose removal/installation.) |
| 17 | Fuel hose |
| 18 | PCV hose (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION (SKYACTIV-G 2.0].) |
| 19 | Intake manifold (See Intake Manifold Removal Note .) (See Intake Manifold Installation Note .) |
| 20 | Fresh-air duct (See Fresh-air Duct Removal Note .) (See Fresh-air Duct Installation Note .) |
