Joint Pipe Installation Note
Joint Pipe Installation Note
Install the joint pipe as shown in the figure.

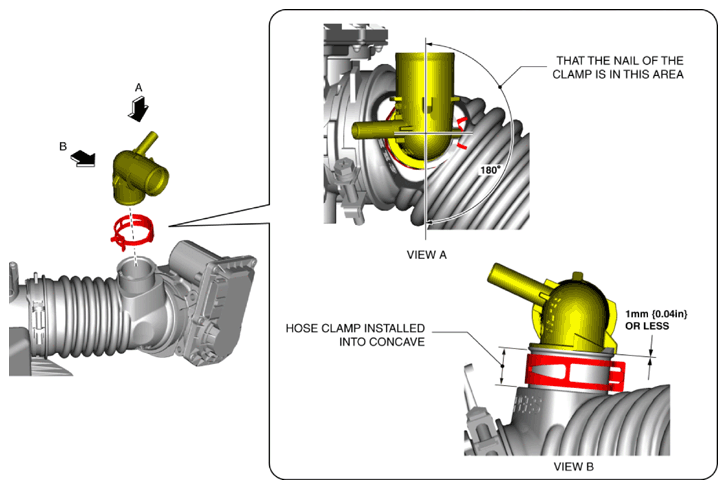

Fig 1: Installing Joint Pipe
Courtesy of MAZDA MOTORS CORP.
