Intake Manifold Installation Note

  1. Install the intake manifold.
  2. Connect the harness clip from the intake manifold as shown in the figure.

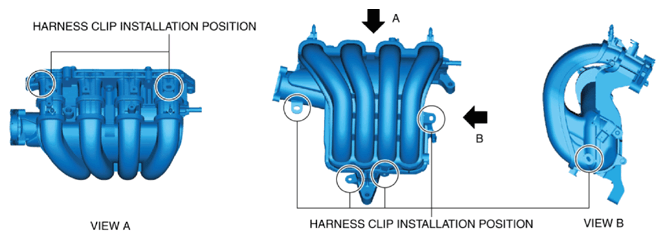

    Fig 1: Locating Harness Clip Installation Position
    G10951688Courtesy of MAZDA MOTORS CORP.
  3. Connect the MAP sensor/IAT sensor No. 2 connector. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
  4. Install the following parts:
    1. Air box complete (See AIR BOX COMPLETE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Wiper arm and blade (See WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    4. Front crossmember under cover (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
    5. Front splash shield No. 1 (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
    6. Front wheel and tire (See GENERAL PROCEDURES (SUSPENSION) .)
    7. Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    8. Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    9. Seal cover (See SEAL COVER REMOVAL/INSTALLATION .)
