Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.
    Fig 1: Checking Ventilation Hose Installation Dimension
    G10951695Courtesy of MAZDA MOTORS CORP.

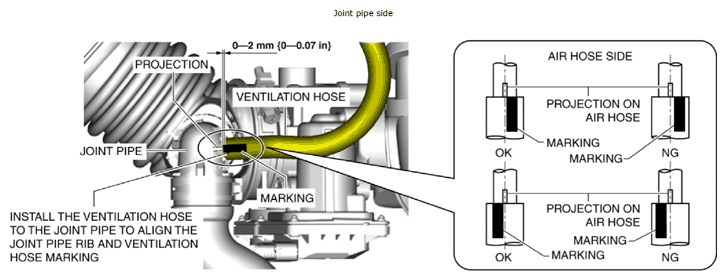

    Fig 2: Aligning Joint Pipe Rib And Ventilation Hose Marking
    G10951696Courtesy of MAZDA MOTORS CORP.
