Air Cleaner Cover Installation Note

  1. Install the air cleaner cover as shown in the figure.

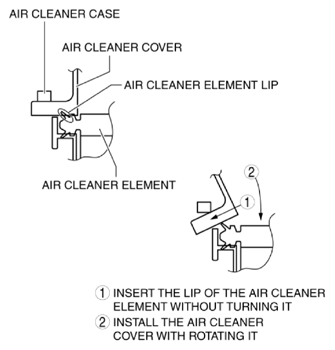

    Fig 1: Installing Air Cleaner Cover
    G10951698Courtesy of MAZDA MOTORS CORP.
  2. Secure the air cleaner cover and the air cleaner case with the clip.

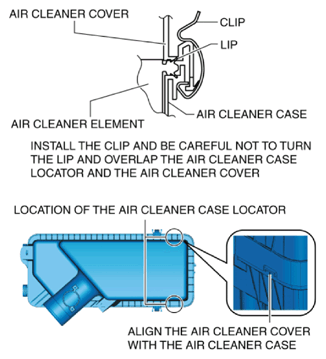

    Fig 2: Identifying Air Cleaner Cover, Air Cleaner Element, Air Cleaner Case And Clip
    G10951699Courtesy of MAZDA MOTORS CORP.
