Transmission Control Device: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the oil pan and control valve body. <Ref. to REMOVAL , Control Valve Body.>
  3. Remove the inhibitor switch. <Ref. to REMOVAL , Inhibitor Switch.>
  4. Remove the spring pin.
    NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.

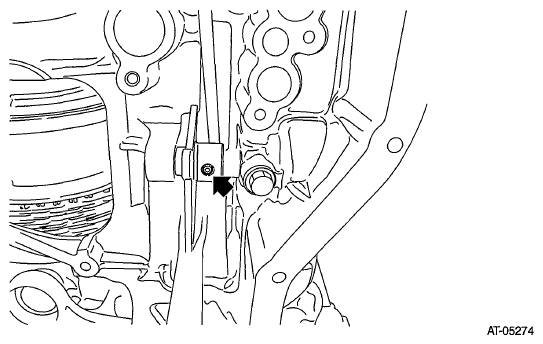

    Fig 1: Locating Spring Pin
    G06654616Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolt and remove the range select lever, manual plate and parking rod.
    NOTE: Do not damage the lip of oil seal press-fitted in the case.

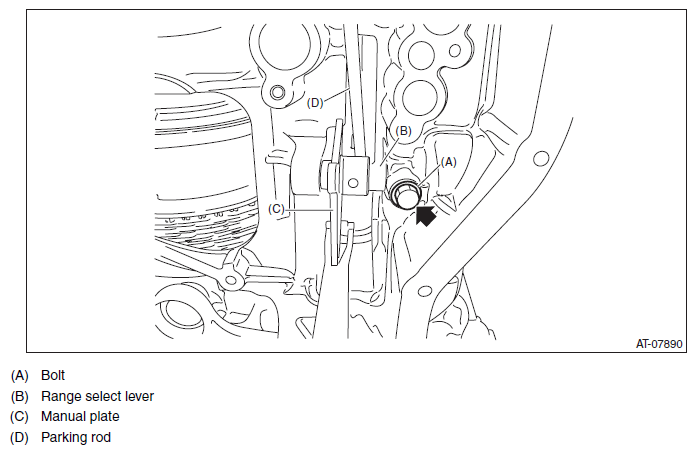

    Fig 2: Locating Manual Plate, Parking Rod, Range Select Lever And Bolt
    G11577850Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the detent spring.

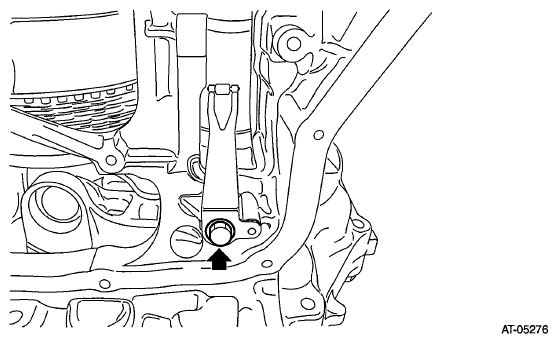

    Fig 3: Removing Detent Spring
    G06654618Courtesy of SUBARU OF AMERICA, INC.
