Inhibitor Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  3. Lift up the vehicle.
  4. Remove the snap pin and washer.

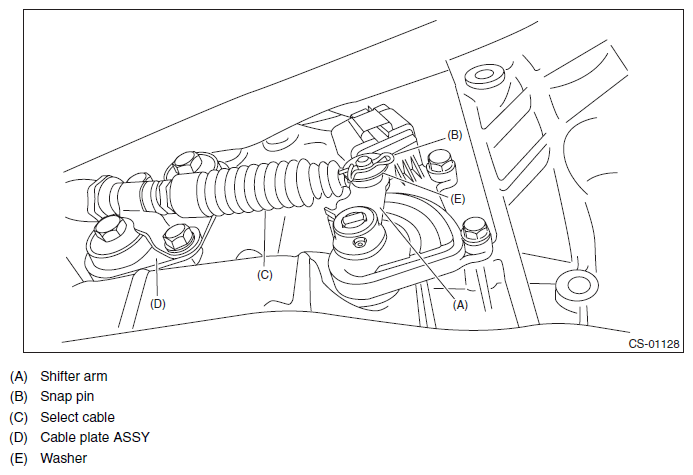

    Fig 1: Removing Snap Pin And Washer
    G11577668Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spring pin and shifter arm.

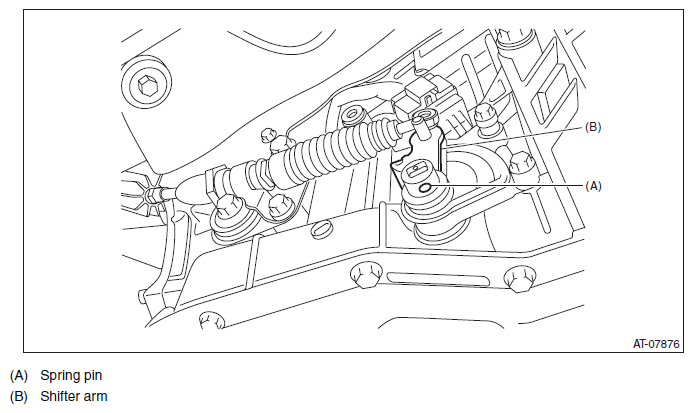

    Fig 2: Removing Spring Pin And Shifter Arm
    G11577669Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the inhibitor harness connector from inhibitor switch.
  7. Remove the two inhibitor switch securing bolts.
    Fig 3: Removing Inhibitor Switch Securing Bolts
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor switch.
