Control Valve Body: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.
Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.

NOTE: The control valve body is replaced as an assembly only, because it is a non-disassembly part.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
Lift up the vehicle.
Clean the transmission exterior.
Remove the CVTF drain plug to drain CVTF.

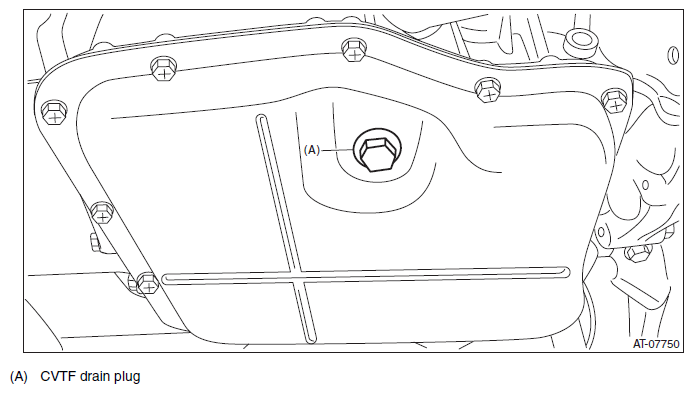

Fig 1: CVTF Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF drain plug.
NOTE: Use a new gasket.

Tightening torque:

39.2 N.m (4.0 kgf-m, 28.9 ft-lb)
Remove the oil pan.
CAUTION: Be careful not to allow foreign matter such as dust or dirt to enter the oil pan.

Fig 2: Removing Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Remove the magnet.
Disconnect the control valve harness connector.

Fig 3: Disconnecting Control Valve Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil strainer.

Fig 4: Removing Oil Strainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the control valve body.
CAUTION: Do not let the manual valve drop off.

Fig 5: Removing Control Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the pressure pipe.
NOTE: It may be located in transmission case side.

Fig 6: Removing Pressure Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from oil strainer.

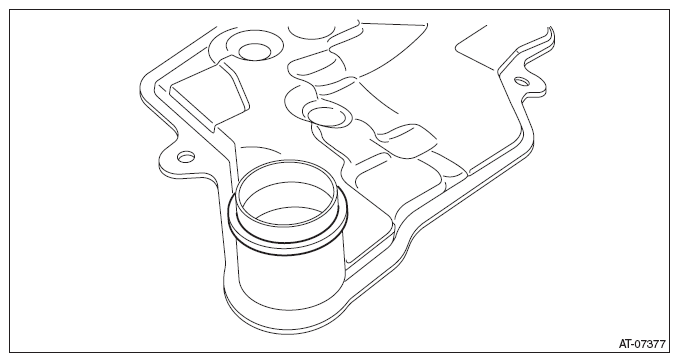

Fig 7: Removing O-Ring From Oil Strainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from pressure pipe.

Fig 8: Removing O-Ring From Pressure Pipe
Courtesy of SUBARU OF AMERICA, INC.
