Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the straight pin to reduction driven gear assembly.

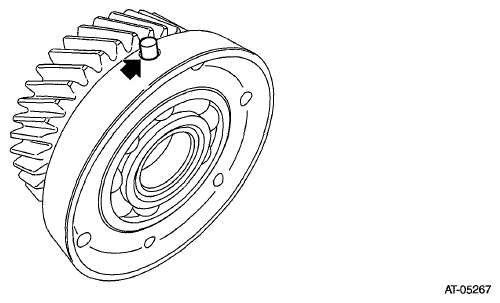

    Fig 1: Removing Straight Pin
    G06654607Courtesy of SUBARU OF AMERICA, INC.
  2. Fit the straight pin portion to the recess portion of transmission case and install the reduction driven gear and install the snap ring.

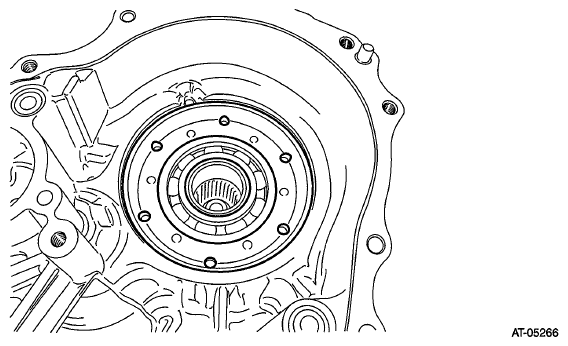

    Fig 2: Removing Reduction Driven Gear Assembly
    G06654606Courtesy of SUBARU OF AMERICA, INC.
  3. Select the snap ring. <Ref. to ADJUSTMENT , Reduction Driven Gear.>
  4. Replace with the selected snap ring.
    NOTE: If the clearance measured in step  3 is within standard, the snap ring replacement is not necessary.
  5. Install the forward clutch assembly. <Ref. to INSTALLATION , Forward Clutch Assembly.>
  6. Install the intermediate case. <Ref. to INSTALLATION , Intermediate Case.>
  7. Install the transfer reduction driven gear assembly. <Ref. to INSTALLATION , Transfer Reduction Driven Gear.>
  8. Install the center differential carrier. <Ref. to INSTALLATION , Center Differential Carrier.>
  9. Install the transfer clutch assembly. <Ref. to INSTALLATION , Transfer Clutch.>
  10. Install the rear drive shaft. <Ref. to INSTALLATION , Rear Drive Shaft.>
  11. Install the extension case. <Ref. to INSTALLATION , Extension Case.>
  12. Install the transmission to vehicle. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
