Forward Clutch Assembly: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Select a washer. <Ref. to ADJUSTMENT , Forward Clutch Assembly.>
  2. Install the selected washer.

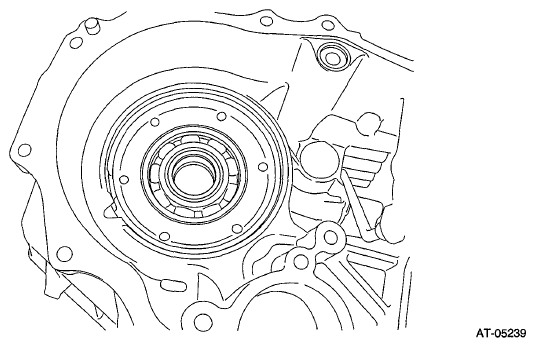

    Fig 1: Installing Selected Washer
    G06654568Courtesy of SUBARU OF AMERICA, INC.
  3. Install the forward clutch assembly.

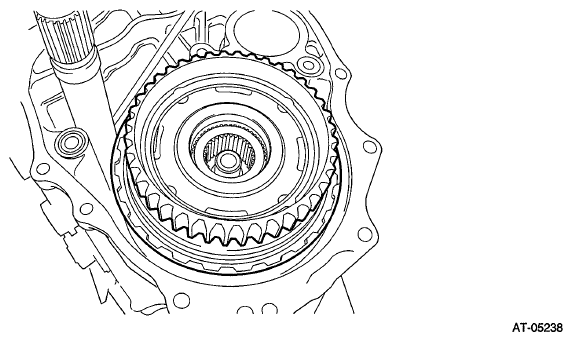

    Fig 2: Removing Forward Clutch Assembly
    G06654567Courtesy of SUBARU OF AMERICA, INC.
  4. Install the thrust needle bearing.
    NOTE: Install the thrust needle bearing in the correct direction.

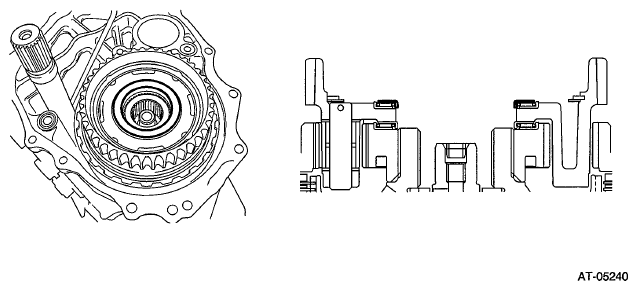

    Fig 3: Installing Thrust Needle Bearing
    G06654571Courtesy of SUBARU OF AMERICA, INC.
  5. Install the intermediate case. <Ref. to INSTALLATION , Intermediate Case.>
  6. Install the transfer reduction driven gear assembly. <Ref. to INSTALLATION , Transfer Reduction Driven Gear.>
  7. Install the center differential carrier. <Ref. to INSTALLATION , Center Differential Carrier.>
  8. Install the transfer clutch assembly. <Ref. to INSTALLATION , Transfer Clutch.>
  9. Install the rear drive shaft. <Ref. to INSTALLATION , Rear Drive Shaft.>
  10. Install the extension case. <Ref. to INSTALLATION , Extension Case.>
  11. Install the transmission to vehicle. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
