Forward Clutch Assembly: Adjustment

WARNING: This page is about a different variant/trim than selected.

Measure depth "A" from the ST upper face to the washer catch surface.
ST 398643600 GAUGE

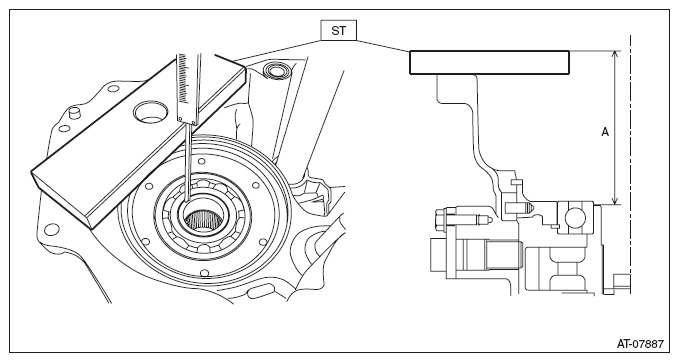

Fig 1: Measuring Depth From ST Upper Face To Washer Catch Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the forward clutch assembly to intermediate case.
Setting the ST, measure height "B" from the ST upper side to the intermediate case mating surface.
ST 499575600 GAUGE

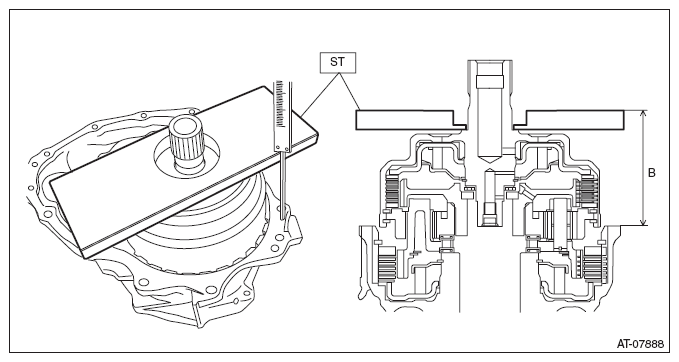

Fig 2: Measuring Height B From ST Upper Side To Intermediate Case Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Obtain the thickness of washer using the following formula.
Calculation formula:

T (mm) = (A - 15) - (B - 15) - (0.35 - 0.70)

[T (in) = (A - 0.591) - (B - 0.591) - (0.014 - 0.028)]

T: Washer thickness

A: Depth from the ST upper face to the washer catch surface

B: Height from the upper surface of the ST to the mating surface of the intermediate case

15 mm (0.591 in): Thickness of ST

0.35 - 0.70 mm (0.014 - 0.028 in): Clearance

Select the washer to meet the value "T" obtained from step 4.
