Intermediate Case: Installation

WARNING: This page is about a different variant/trim than selected.

Clean the mating surface of intermediate case and transmission case.
Face the O-ring side of the CVTF filter to the intermediate case side, and install the CVTF filter.
NOTE: Apply CVTF to the O-rings.

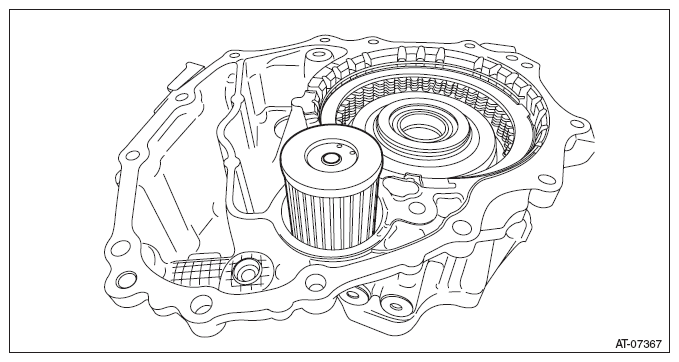

Fig 1: Removing CVTF Filter
Courtesy of SUBARU OF AMERICA, INC.
Install the O-ring to the transmission case.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.

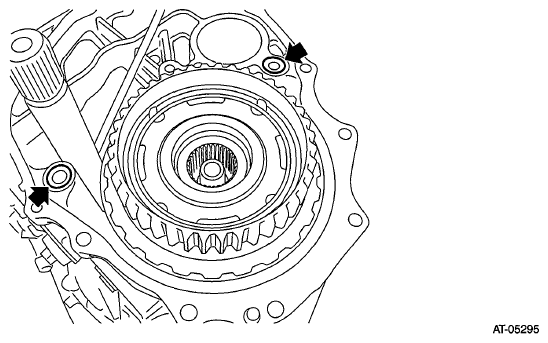

Fig 2: Removing O-Ring From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to intermediate case seamlessly.
Liquid gasket:

THREE BOND 1215B or equivalent

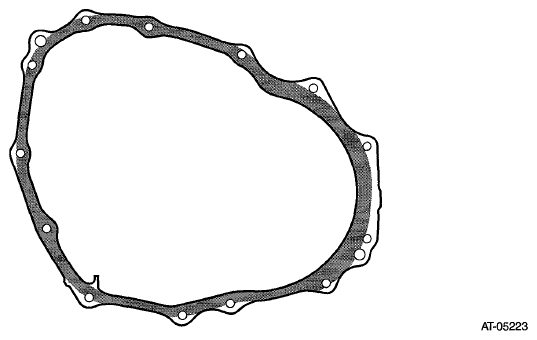

Fig 3: Liquid Gasket Applying Area To Intermediate Case Seamlessly
Courtesy of SUBARU OF AMERICA, INC.
Install the intermediate case and the transmission hanger to the transmission case.
NOTE: Make sure to install the arrowed bolt.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

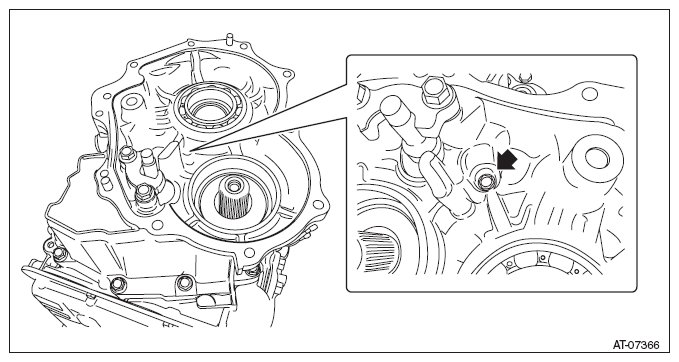

Fig 4: Installing Transmission Single Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer reduction driven gear assembly. <Ref. to INSTALLATION , Transfer Reduction Driven Gear.>
Install the center differential carrier. <Ref. to INSTALLATION , Center Differential Carrier.>
Install the transfer clutch assembly. <Ref. to INSTALLATION , Transfer Clutch.>
Install the rear drive shaft. <Ref. to INSTALLATION , Rear Drive Shaft.>
Install the parking pawl. <Ref. to INSTALLATION , Parking Pawl.>
Install the extension case. <Ref. to INSTALLATION , Extension Case.>
Install the transmission to vehicle. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
