Reduction Driven Gear: Adjustment
WARNING: This page is about a different variant/trim than selected.

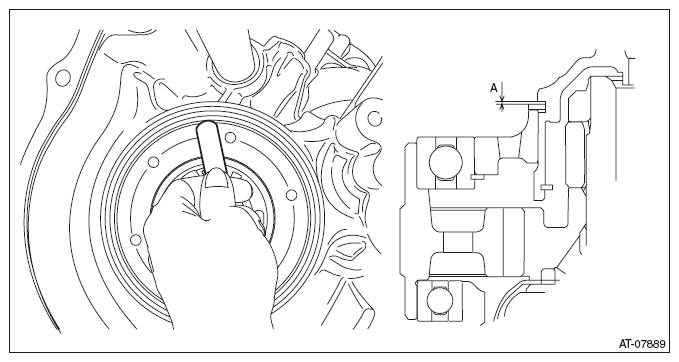

- Measure clearance "A" between snap ring and transmission case.
Specification:
0.05 - 0.25 mm (0.002 - 0.01 in)
- If clearance "A" is out of standard, select the snap ring within standard.
| Snap ring | |
|---|---|
| Part No. | Thickness mm (in) |
| 805100460 | 2.0 (0.079) |
| 805100461 | 2.1 (0.083) |
| 805100462 | 2.2 (0.087) |
| 805100463 | 2.3 (0.091) |
| 805100464 | 2.4 (0.094) |
