Front Reduction Drive Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the mating surface of converter case cover and converter case.
  2. Select the shim for front reduction drive gear. <Ref. to ADJUSTMENT , Front Reduction Drive Gear.>
  3. Apply CVTF to the shims and install on the bearing catch surface of the front reduction drive gear.
  4. Install the seal ring to converter case cover.
    NOTE:
    • Use new seal rings.
    • When installing the seal rings, do not expand the seal rings too much.

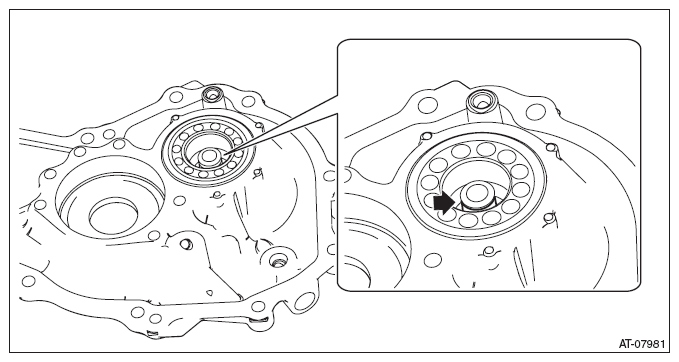

    Fig 1: Removing Seal Ring From Converter Case Cover
    G09482326Courtesy of SUBARU OF AMERICA, INC.
  5. Install the front reduction drive gear and front reduction driven gear together.
    CAUTION: Be careful not to detach the spline of input clutch and the spline of front reduction driven shaft.

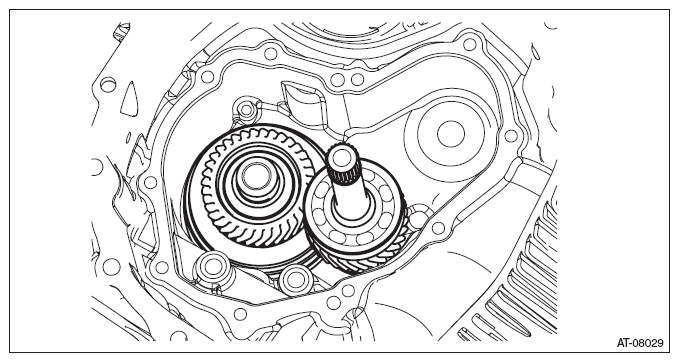

    Fig 2: Removing Front Reduction Driven Shaft
    G09482339Courtesy of SUBARU OF AMERICA, INC.
  6. Install the converter case cover. <Ref. to INSTALLATION , Converter Case Cover.>
  7. Install the oil pump chain cover and the oil pump chain. <Ref. to INSTALLATION , Oil Pump Chain.>
  8. Install the drive pinion shaft assembly. <Ref. to INSTALLATION , Drive Pinion Shaft Assembly.>
  9. Install the primary pulley, secondary pulley and variator chain. <Ref. to INSTALLATION , Primary Pulley and Secondary Pulley.>
  10. Install the transmission case. <Ref. to INSTALLATION , Transmission Case.>
  11. Install the forward clutch assembly. <Ref. to INSTALLATION , Forward Clutch Assembly.>
  12. Install the intermediate case. <Ref. to INSTALLATION , Intermediate Case.> 13) Install the transfer reduction driven gear assembly. <Ref. to INSTALLATION , Transfer Reduction Driven Gear.>
  13. Install the center differential carrier. <Ref. to INSTALLATION , Center Differential Carrier.>
  14. Install the transfer clutch assembly. <Ref. to INSTALLATION , Transfer Clutch.>
  15. Install the rear drive shaft. <Ref. to INSTALLATION , Rear Drive Shaft.>
  16. Install the extension case. <Ref. to INSTALLATION , Extension Case.>
  17. Install the primary speed sensor. <Ref. to INSTALLATION , Primary Speed Sensor.>
  18. Install the transmission harness. <Ref. to INSTALLATION , Transmission Harness.>
  19. Install the control valve body and oil pan. <Ref. to INSTALLATION , Control Valve Body.>
  20. Install the air breather hose. <Ref. to INSTALLATION , Air Breather Hose.>
  21. Install the transmission assembly to the vehicle. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
