Drive Pinion Shaft Assembly: Installation

  1. Assemble the drive pinion assembly to the oil pump housing. See INSTALLATION , Oil Pump.
  2. Install oil pump housing to transmission case. See INSTALLATION , Oil Pump.
  3. Combine the torque converter case with the transmission case. See INSTALLATION , Torque Converter Clutch Case.
  4. Install reduction driven gear. See INSTALLATION Reduction Driven Gear.
  5. Install reduction drive gear (MPT model). See INSTALLATION , Reduction Drive Gear.
  6. Install the center differential carrier (VTD model). See INSTALLATION , Center Differential Carrier.
  7. Combine the extension case with the transmission case, and install vehicle speed sensor 1 (rear). See INSTALLATION , Extension Case.
  8. Insert inhibitor switch and transmission connector into stay.
  9. Install air breather hose. See INSTALLATION , Air Breather Hose.
  10. Install the oil cooler inlet and outlet pipes. See INSTALLATION , ATF Cooler Pipe and Hose.
  11. Install the oil charger pipe with O-ring.
  12. Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
    1. Normal protrusion A:  50 - 55 mm (1.97 - 2.17 in)

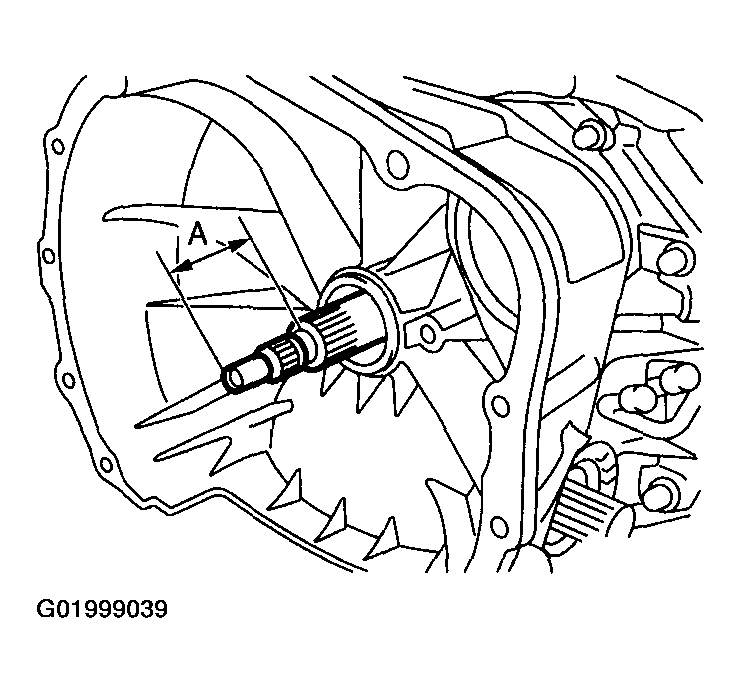

    Fig 1: Inserting Input Shaft While Turning Lightly By Hand
    G01999039Courtesy of SUBARU OF AMERICA, INC.
  13. Install the torque converter clutch assembly. See INSTALLATION , Torque Converter Clutch Assembly.
  14. Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
