Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

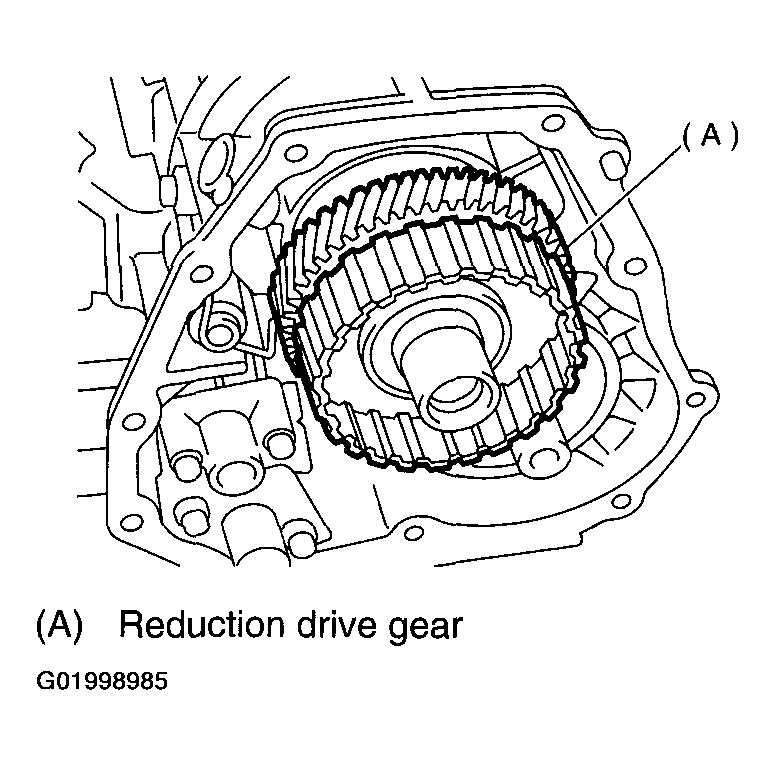

    Fig 1: Installing Reduction Drive Gear Assembly
    G01998985Courtesy of SUBARU OF AMERICA, INC.
  2. Install reduction driven gear. See INSTALLATION , Reduction Driven Gear.
  3. Combine the transmission case with the extension case, and install rear vehicle speed sensor. See INSTALLATION , Extension Case.
  4. Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
