Center Differential Carrier: Installation

  1. Install the center differential assembly with shims.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

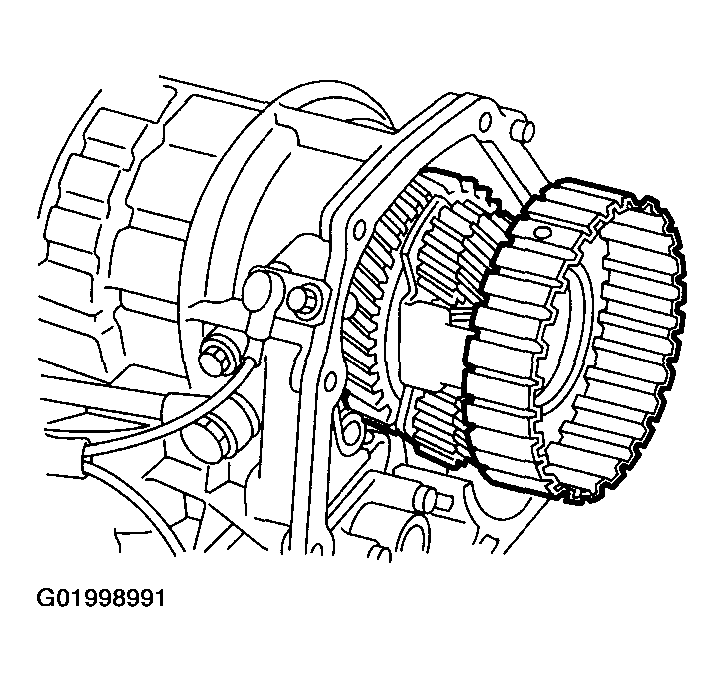

    Fig 1: Installing Center Differential Assembly With Shims
    G01998991Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the rear drive shaft. See INSTALLATION , Rear Drive Shaft.
  3. Combine the transmission case with the extension case, and install rear wheel speed sensor. See INSTALLATION , Extension Case.
  4. Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
