Lighting Systems Location Index: Exterior

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

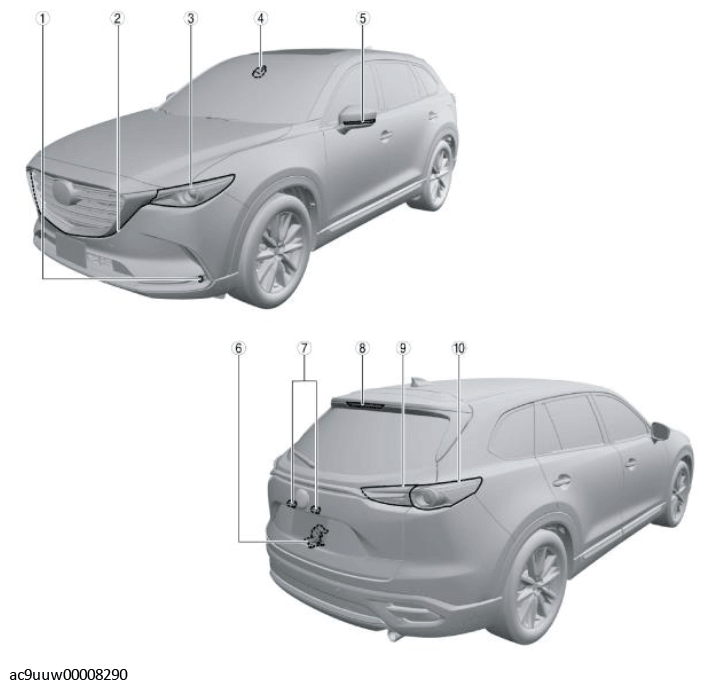

Fig 1: Lighting Systems Related Components - Exterior

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front fog light (with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT INSPECTION .) (See FRONT FOG LIGHT AIMING .)
2	Signature wing illumination (with signature wing illumination) (See SIGNATURE WING ILLUMINATION REMOVAL/INSTALLATION .) (See SIGNATURE WING ILLUMINATION INSPECTION .) (See SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION .) (See SIGNATURE WING ILLUMINATION SHORT CORD INSPECTION .)
3	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .) (See DRL (DAYTIME RUNNING LIGHT) BULB REMOVAL/INSTALLATION .) (See PARKING LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
4	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .)
5	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION .) (See SIDE TURN LIGHT INSPECTION .)
6	Auto leveling sensor (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .) (See AUTO LEVELING SENSOR INSPECTION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
7	License plate lights (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .)
8	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .) (See HIGH-MOUNT BRAKE LIGHT SHORT-CORD REMOVAL/INSTALLATION .) (See HIGH-MOUNT BRAKE LIGHT SHORT-CORD INSPECTION .)
9	Liftgate light (See LIFTGATE LIGHT REMOVAL/INSTALLATION .) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .)
10	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION .) (See TAILLIGHT BULB REMOVAL/INSTALLATION .) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION .) (See REAR COMBINATION LIGHT SHORT-CORD INSPECTION .)
