Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel in the direction opposite to the side on which the light is to be removed.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Partially peel back the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  4. Partially peel back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

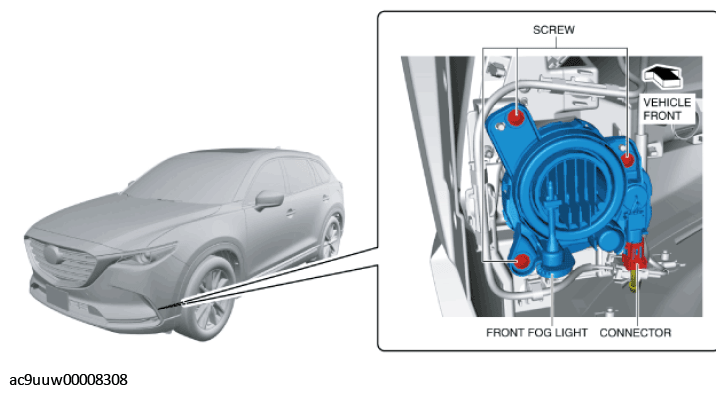

    Fig 1: Front Fog Light, Connector And Screws
    G11435106Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
  7. Remove the front fog light.

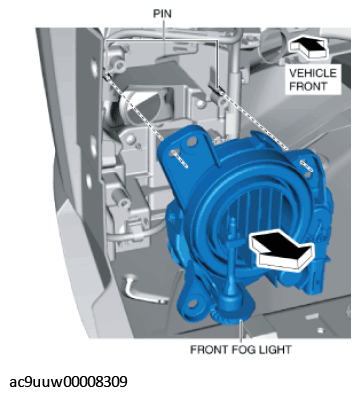

    Fig 2: Removing Front Fog Light
    G11435107Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
  9. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)
