Vehicle interior, center

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    7. Front console box (Refer to FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. CD player (Refer to CD PLAYER REMOVAL .) (Refer to CD PLAYER INSTALLATION .)
    9. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    10. Side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
    11. Rear console (Refer to REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Disconnect the connector from the keyless antenna.

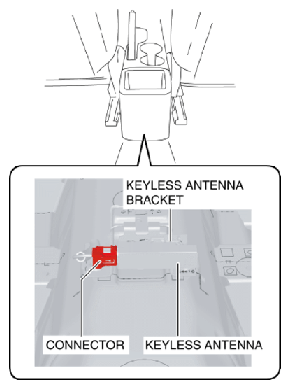

    Fig 1: Disconnecting Connector From Keyless Antenna
    G10914445Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.
  4. While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the bracket.

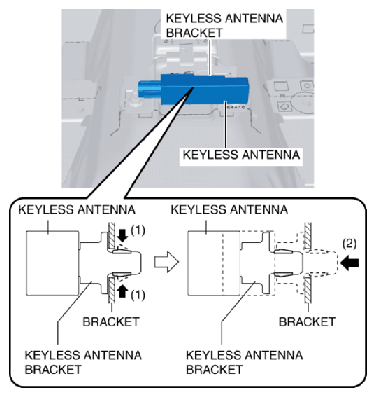

    Fig 2: Detaching Keyless Antenna Bracket Tab From Bracket
    G10914446Courtesy of MAZDA MOTORS CORP.
  5. Remove the keyless antenna from the bracket.
  6. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

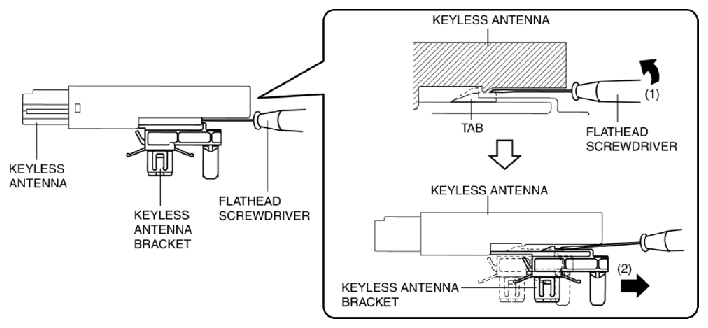

    Fig 3: Inserting Tape-Wrapped Flathead Screwdriver Into Position
    G10914447Courtesy of MAZDA MOTORS CORP.
  7. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  8. Remove the keyless antenna bracket from the keyless antenna.
  9. Install in the reverse order of removal.
