Floor Covering Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front seat (Refer to FRONT SEAT REMOVAL/INSTALLATION .)
    2. Audio amplifier (with Bose ®) (Refer to AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
    3. Lower anchor cover of the front seat belt (Refer to FRONT SEAT BELT REMOVAL/INSTALLATION .)
    4. Lower anchor bolt of the front seat belt (Refer to FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    6. Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
    7. Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
    8. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    11. Front console box (Refer to FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    12. CD player (Refer to CD PLAYER REMOVAL .) (Refer to CD PLAYER INSTALLATION .)
    13. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    14. Side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
    15. Rear console (Refer to REAR CONSOLE REMOVAL/INSTALLATION .)
    16. Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    17. Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    18. Rear scuff plate (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    19. B-pillar lower trim (Refer to B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    20. Rear seat cushion (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    21. Accelerator pedal (Refer to ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
    22. Joint cover (Refer to STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    23. Front heat duct (passenger-side) (Refer to FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Set the selector lever component aside. (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  4. Remove fasteners.

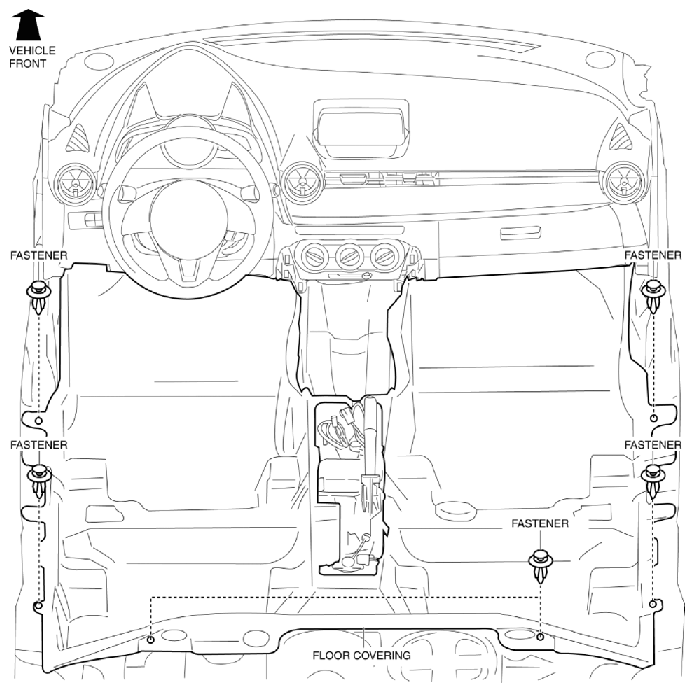

    Fig 1: Identifying Floor Covering And Fasteners
    G10914848Courtesy of ABLE BODY CORP.
  5. Take the floor covering out from the door opening.
  6. Install in the reverse order of removal. (Refer to Floor Covering Installation Note .)
