Center Lower Panel Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (without electric parking brake) (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (without electric parking brake) (See SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (without electric parking brake) (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Console side panel (with electric parking brake) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    5. Switch panel No. 2 (with electric parking brake) (See SWITCH PANEL REMOVAL/INSTALLATION .)
    6. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)
    7. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    8. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    9. Console side panel (without electric parking brake) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    10. Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    11. CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
    12. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    13. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    14. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    15. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    16. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    17. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    18. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    19. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    20. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    21. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Remove the RECIRCULATE/FRESH lever knob. (with manual air conditioner)

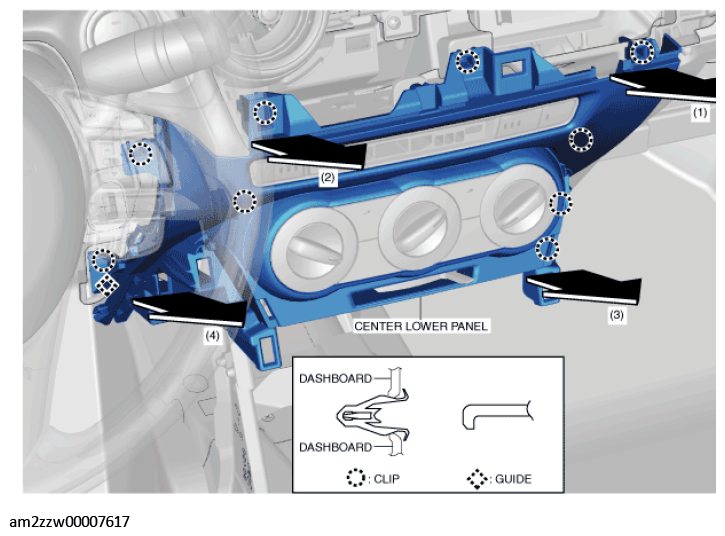

  4. Move the center lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips and guide.
    G11434469Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
