Glove Compartment Removal/Installation

  1. Open the glove compartment.

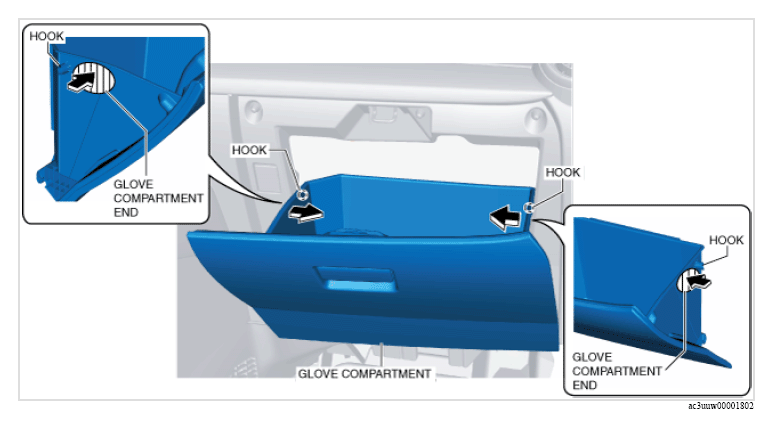

  2. Press the glove compartment ends in the directions of the arrows shown in the figure and detach the hooks.
    G13152822Courtesy of MAZDA MOTORS CORP.
    CAUTION:

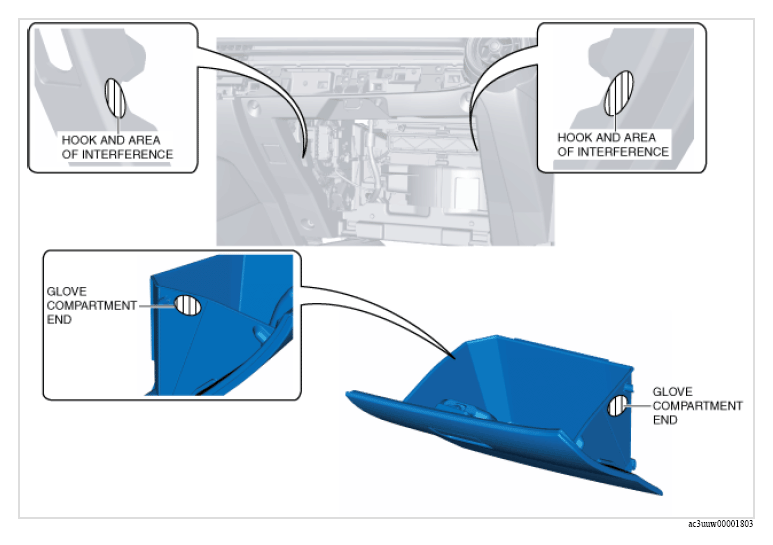

    • When detaching the hooks, the hooks could interfere with the passenger-side lower panel and cause scratches or damage. When detaching the hooks, press the glove compartment ends so that the hooks do not interfere with the passenger-side lower panel.
    G13152823Courtesy of MAZDA MOTORS CORP.

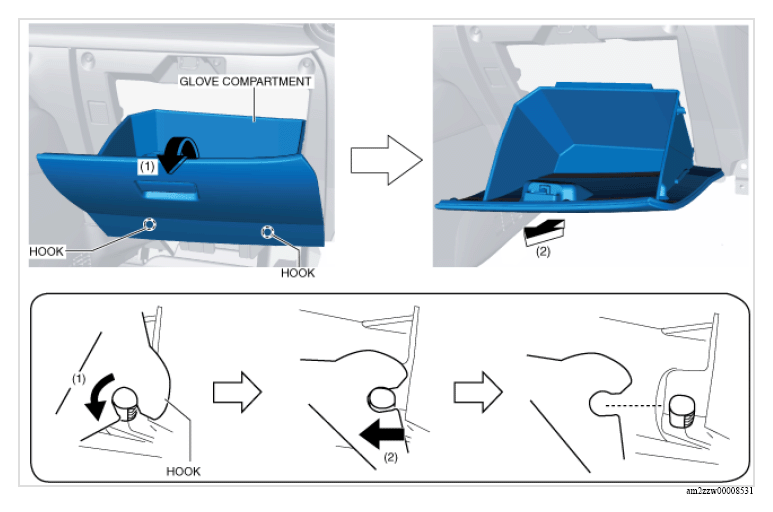

  3. Lower the glove compartment in the direction of arrow (1) shown in the figure.
    G13152824Courtesy of MAZDA MOTORS CORP.
  4. Move the glove compartment in the direction of arrow (2) shown in the figure and remove it while detaching the hooks.
  5. Install in the reverse order of removal.
