Shift Bezel Removal/Installation

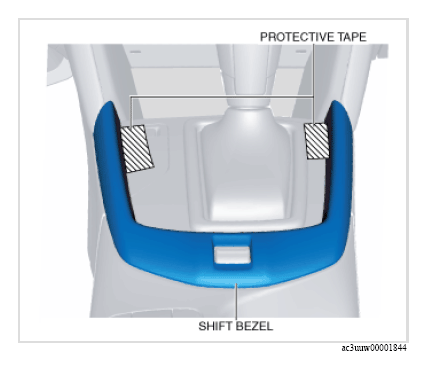

  1. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    G13152890Courtesy of MAZDA MOTORS CORP.

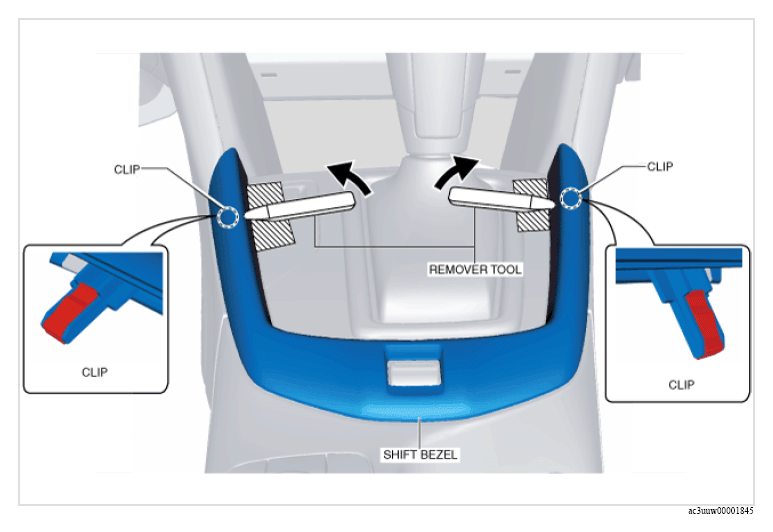

  2. Insert a remover tool into the position shown in the figure, move it in the directions of the arrows and detach the detach the clips from the shift panel.
    G13152891Courtesy of MAZDA MOTORS CORP.

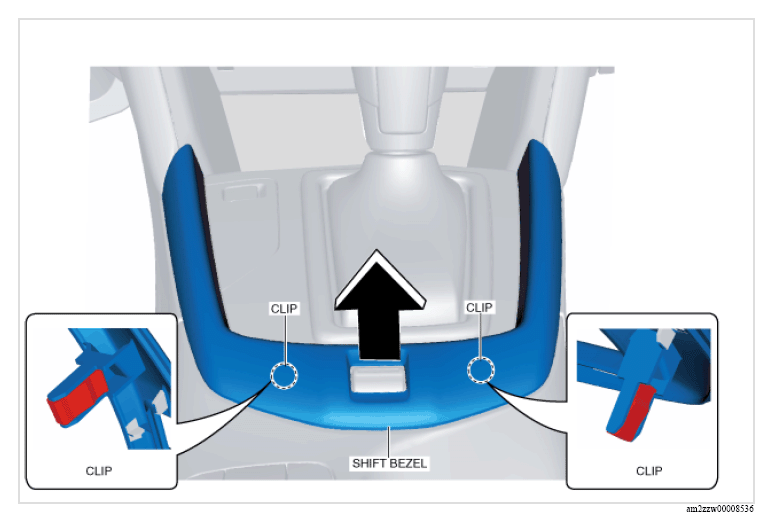

  3. Pull the shift bezel in the direction of the arrow shown in the figure, detach the clips from the shift panel and remove the shift bezel.
    G13152892Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
