Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove the cap nut.

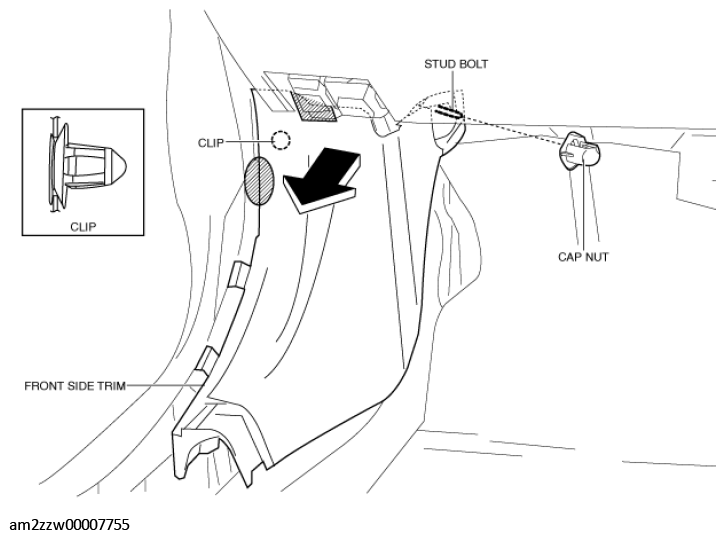

    G11434533Courtesy of MAZDA MOTORS CORP.
  4. Pull the front side trim out of the stud bolt.
  5. Hold the shaded area shown in the figure, move the front side trim in the direction of the arrow, and detach the clip.
  6. Remove the front side trim.
  7. Install in the reverse order of removal.
