Back Trim Removal/Installation: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION ).
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION ).
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION ).
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
    7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION ).
    8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION ).
    9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION ).
    10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION ).
    11. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION ).
    12. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION ).
  3. Remove the fasteners.

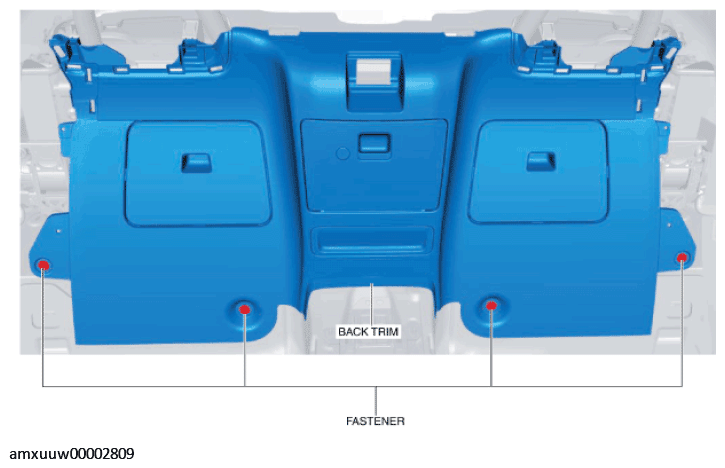

    Fig 1: Identifying Back Trim And Fasteners
    G11275209Courtesy of MAZDA MOTORS CORP.
  4. Move the back trim in the order of arrows (1), (2), (3) and (4) while detaching clips A and B using the fastener remover and remove the back trim.
    Fig 2: Detaching Back Trim From Clips
    G11275210Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.(See BACK TRIM INSTALLATION NOTE )
