Rear Console Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION ).
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION ).
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION ).
  3. Remove the screws.

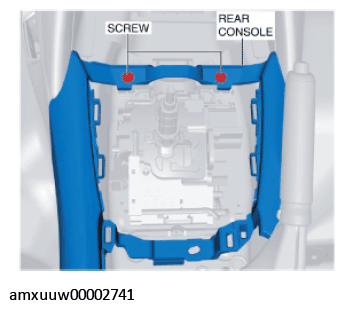

    Fig 1: Identifying Rear Console And Screws
    G11275302Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clip.

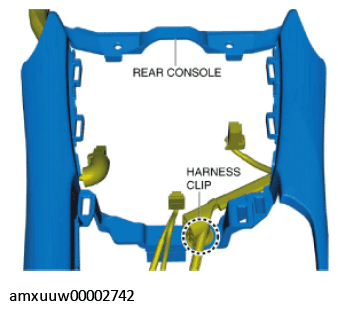

    Fig 2: Identifying Rear Console And Harness Clip
    G11275303Courtesy of MAZDA MOTORS CORP.
  5. Hold the shaded areas shown in the figure, lift up the rear console in the order of arrow (1) and (2), and detach the clips.
    Fig 3: Lifting Rear Console
    G11275304Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
