Wind Blocker Removal/Installation

  1. Move the wind blocker in the direction of the arrow shown in the figure and remove it while pulling out the tabs.

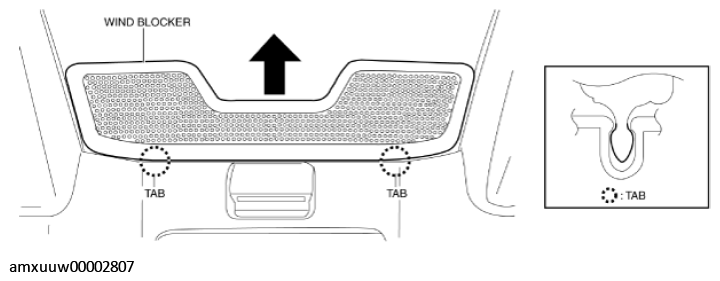

    Fig 1: Removing Wind Blocker
    G11275364Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
