Back Trim Installation Note

CAUTION:

When removing the back trim from the seat back crossmenber, clip B installation holes may be damaged causing the noise due to loose fit of clips B.

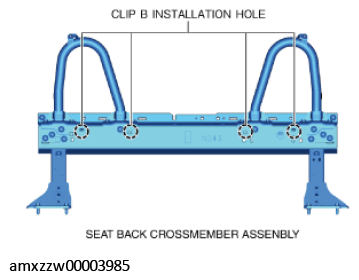

Fig 1: Identifying Seat Back Crossmember Assembly Installation Hole

Courtesy of MAZDA MOTORS CORP.

Clean and degrease around clip B installation holes of the seat back crossmenber.

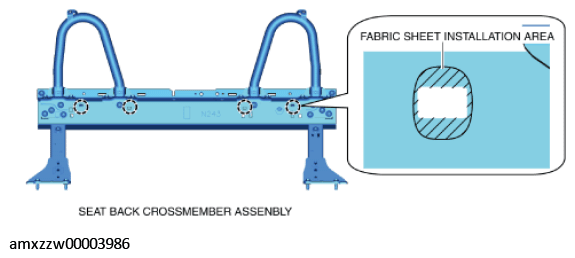

Fig 2: Cleaning Clip Installation Holes Of Seat Back Crossmember
Courtesy of MAZDA MOTORS CORP.
Attach the fablic sheet to the clip B installation holes of the seat back crossmenber as shown in the figure.

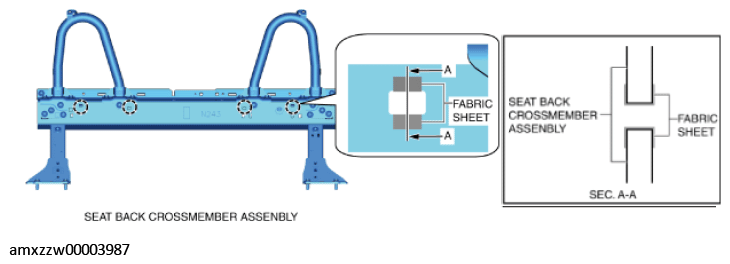

Fig 3: Attaching Fabric Sheet To Clip Installation Holes Of Seat Back Crossmember
