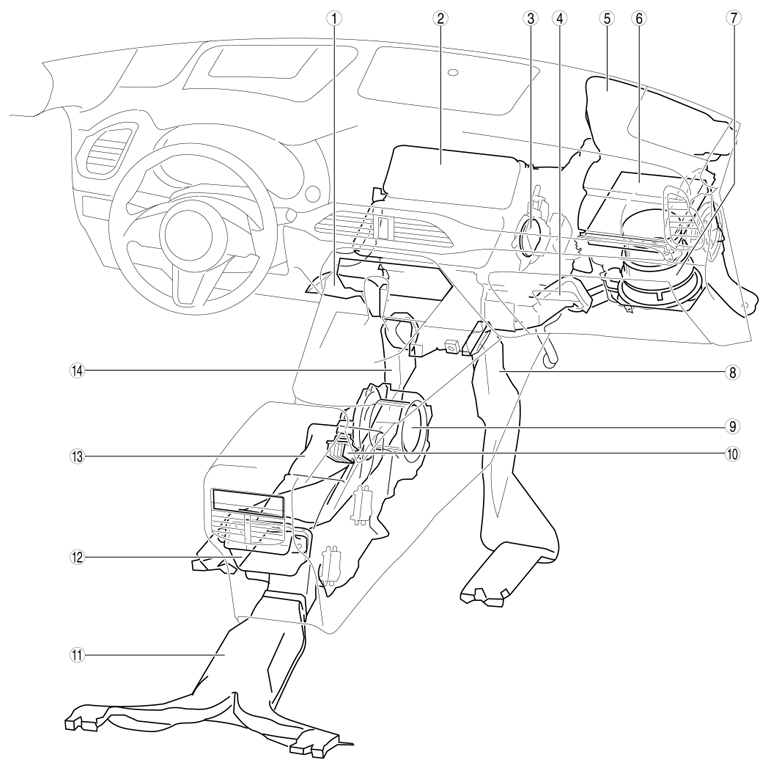

| 1 |
Driver-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 2 |
Front A/C unit
(See FRONT A/C UNIT REMOVAL/INSTALLATION .)
(See FRONT A/C UNIT DISASSEMBLY/ASSEMBLY .) |
| 3 |
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL .)
(See airflow mode main link installation .) |
| 4 |
Passenger-side front heat duct
(See front heat duct removal/installation .) |
| 5 |
Blower unit
(See blower unit removal/installation .)
(See blower unit disassembly/assembly .) |
| 6 |
Air filter
(See air filter removal/installation .)
(See air filter inspection .) |
| 7 |
Front blower motor
(See front blower motor removal/installation .)
(See front blower motor inspection .) |
| 8 |
Passenger-side rear heat duct No. 1
(See rear heat duct no. 1 removal/installation .) |
| 9 |
Rear blower motor
(See REAR BLOWER MOTOR REMOVAL/INSTALLATION .)
(See REAR BLOWER MOTOR INSPECTION .) |
| 10 |
Power MOSFET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOSFET) REMOVAL/INSTALLATION .)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOSFET) INSPECTION .) |
| 11 |
Rear heat duct No. 2
(See
REAR HEAT DUCT No. 2 REMOVAL/INSTALLATION .) |
| 12 |
Rear cooler duct
(See REAR COOLER DUCT REMOVAL/INSTALLATION .) |
| 13 |
Rear A/C unit
(See REAR A/C UNIT REMOVAL/INSTALLATION .)
(See REAR A/C UNIT DISASSEMBLY/ASSEMBLY .) |
| 14 |
Driver-side rear heat duct No. 1
(See
REAR HEAT DUCT No. 1 REMOVAL/INSTALLATION .) |
