Airflow Mode Main Link Installation

  1. Move the front airflow mode links to the positions shown in the figure.

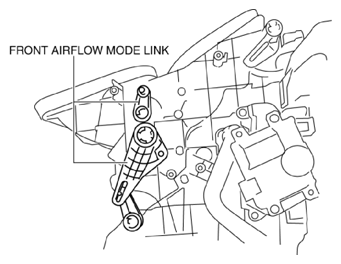

    Fig 1: Identifying Front Airflow Mode Links
    G10948345Courtesy of MAZDA MOTORS CORP.
  2. Install the airflow mode main link in the direction shown in the figure.

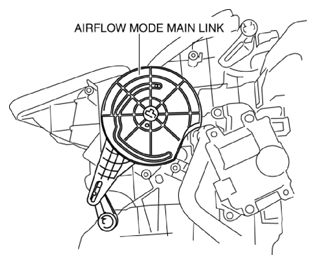

    Fig 2: Identifying Airflow Mode Main Link
    G10948346Courtesy of MAZDA MOTORS CORP.
  3. Move the airflow mode main link in the direction shown in the figure and verify that it rotates smoothly.

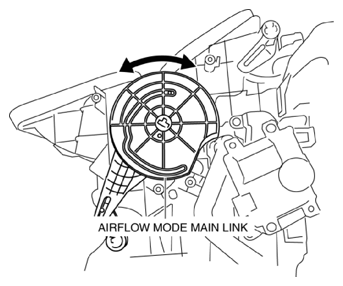

    Fig 3: Moving Airflow Mode Main Link
    G10948347Courtesy of MAZDA MOTORS CORP.
  4. Align airflow mode link tab A of the cover with the link groove on the airflow mode main link side, airflow mode link tab B of the cover with the link groove on the front A/C unit side as shown in the figure, and install the cover.
    NOTE:
    • The airflow mode main link is not secured, therefore hold it with your hand so that it does not detach.

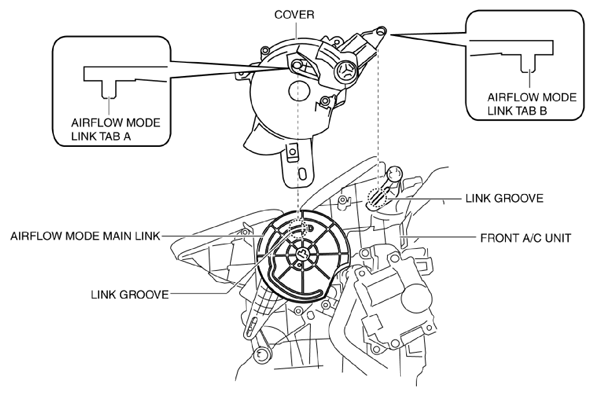

    Fig 4: Identifying Airflow Mode Main Link, Cover, Link Groove And Front A/C Unit
    G10948348Courtesy of MAZDA MOTORS CORP.
  5. Verify that the airflow mode link tabs are engaged with the link grooves.
  6. Install the screws.

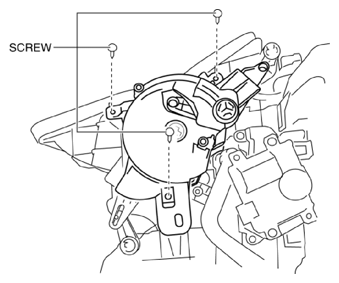

    Fig 5: Installing Airflow Mode Link Screws
    G10948349Courtesy of MAZDA MOTORS CORP.
  7. Align the airflow mode main link shaft with the shape of the front airflow mode actuator hole, and install the front airflow mode actuator.

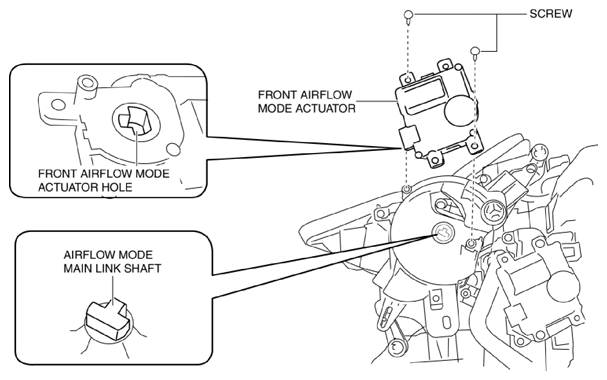

    Fig 6: Aligning Airflow Mode Main Link Shaft With Front Airflow Mode Actuator Hole Shape
    G10948350Courtesy of MAZDA MOTORS CORP.
  8. Install the screws.
  9. Connect the connector.

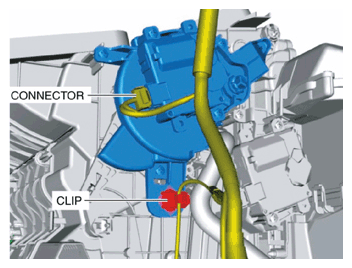

    Fig 7: Identifying Front Airflow Mode Actuator Connector And Clip
    G10948351Courtesy of MAZDA MOTORS CORP.
  10. Install the clip.
  11. Install the following parts:
    1. Passenger-side front heat duct (Refer to FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    2. Passenger-side lower panel (Refer to PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    3. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    4. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    5. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    6. Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    7. Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Dashboard under cover (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    10. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    11. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    12. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    13. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  12. Connect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
