Driver-Side Lower Panel Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Driver-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    6. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.

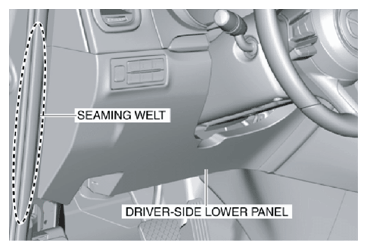

    Fig 1: Identifying Driver-Side Lower Panel And Seaming Welt
    G10950195Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.

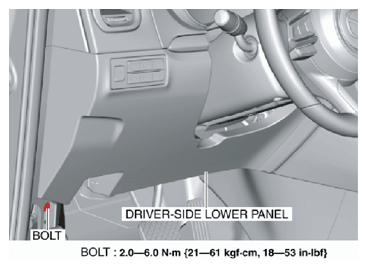

    Fig 2: Removing Bolt
    G10950196Courtesy of MAZDA MOTORS CORP.
  5. Move the driver-side lower panel in the order of arrows (1), (2), and (3) shown in the figure, and detach the clips, hook, tab, and guide from the dashboard.

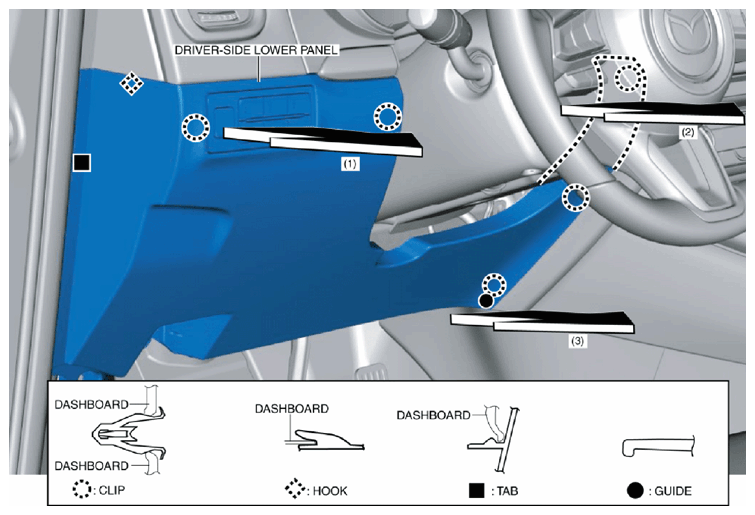

    Fig 3: Moving Driver-Side Lower Panel
    G10950197Courtesy of MAZDA MOTORS CORP.
  6. Remove the wiring harness clip and disconnect the cluster switch connector.
  7. Remove the driver-side lower panel.
  8. Remove the cluster switch when replacing the driver-side lower panel. (Refer to CLUSTER SWITCH REMOVAL/INSTALLATION .)
  9. Install in the reverse order of removal.
