Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Driver-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

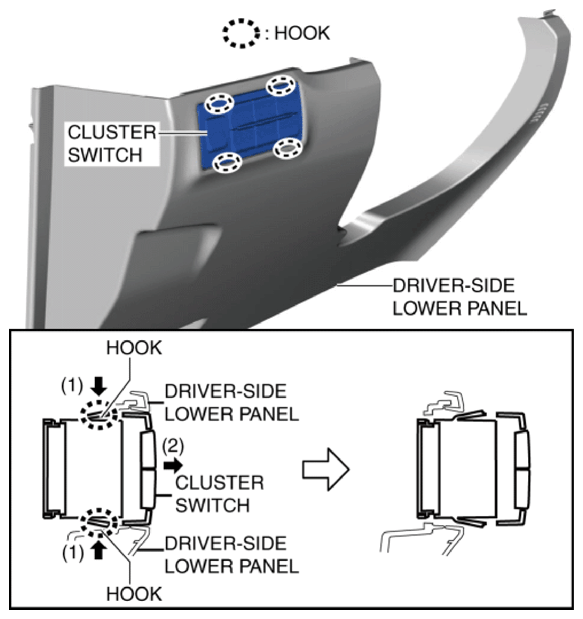

  3. Remove the hooks in the direction of the arrow in the order of (1), (2) shown in the figure.
    Fig 1: Removing Hooks
    G10950213Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
