Front Blower Motor Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the dashboard under cover. (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

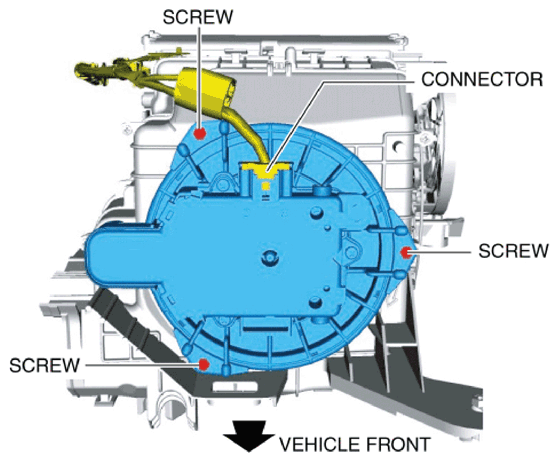

    Fig 1: Identifying Blower Motor Connector And Screws
    G10948317Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the front blower motor.

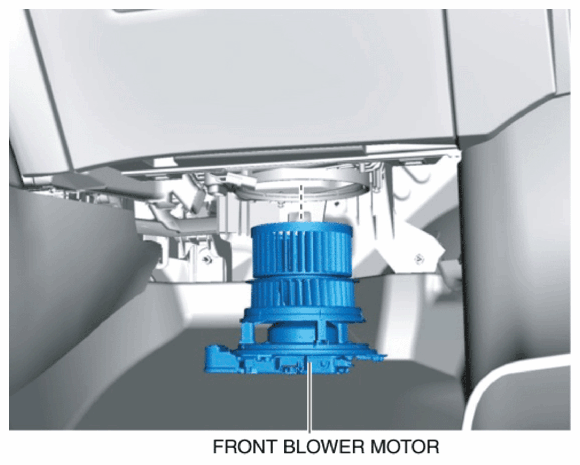

    Fig 2: Identifying Front Blower Motor
    G10948318Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
