Structural View (Refrigerant System)

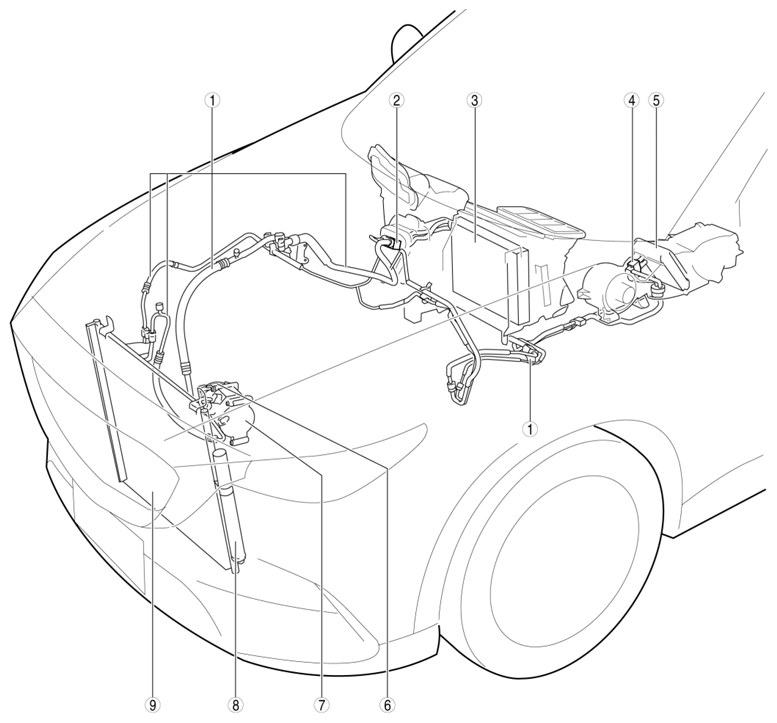

Fig 1: Refrigerant System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION .)
2	Front expansion valve (See FRONT EXPANSION VALVE REMOVAL/INSTALLATION .)
3	Front evaporator (See FRONT EVAPORATOR INSPECTION .)
4	Rear expansion valve (See REAR EXPANSION VALVE REMOVAL/INSTALLATION .)
5	Rear evaporator (See REAR EVAPORATOR INSPECTION .)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY .) (See MAGNETIC CLUTCH ADJUSTMENT .) (See MAGNETIC CLUTCH INSPECTION .)
7	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
8	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION .)
9	Condenser (See CONDENSER REMOVAL/INSTALLATION .) (See CONDENSER INSPECTION .)
