Front Drain Hose Removal/Installation: 4SD: Driver-side

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the wheel blocks for both the front and rear wheels.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. Shift the selector lever from the P position to the D position (ATX).
  4. Remove the sunroof seaming welt. (with sunroof system)
  5. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
  6. Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  7. Remove the following parts:
    1. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    3. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    4. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    5. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
    9. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    10. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    11. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    12. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    13. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  8. Remove bolts.

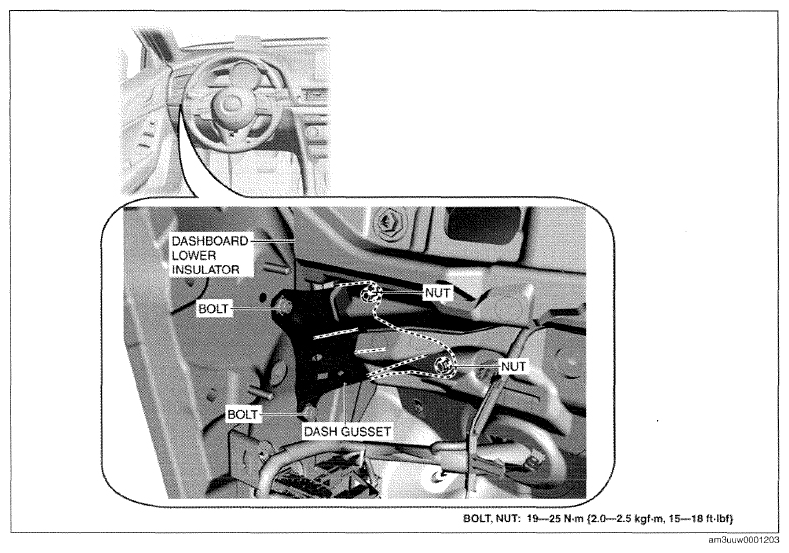

    Fig 1: Dashboard Lower Insulator Replacement Components With Torque Specifications
    G09784029Courtesy of MAZDA MOTORS CORP.
  9. Set the dashboard lower insulator aside.
  10. Remove nuts.
  11. Remove the dash gusset.
  12. Disconnect the front drain hose from the sunroof frame.

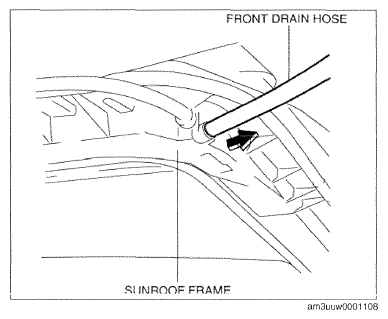

    Fig 2: Disconnecting Front Drain Hose From Sunroof Frame
    G09784030Courtesy of MAZDA MOTORS CORP.
  13. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

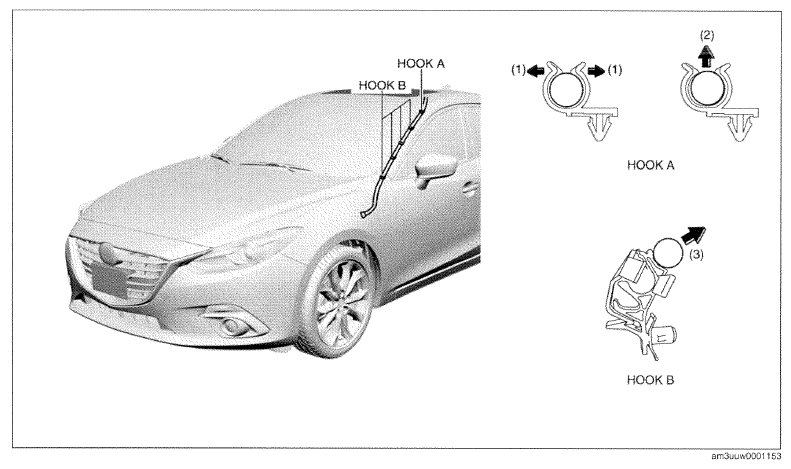

    Fig 3: Pulling Front Drain Hose
    G09784031Courtesy of MAZDA MOTORS CORP.
  14. Remove the front drain hose in the direction of the arrow (3) from hooks B.
  15. Remove the front drain hose in the direction of the arrow (4) from grommet.

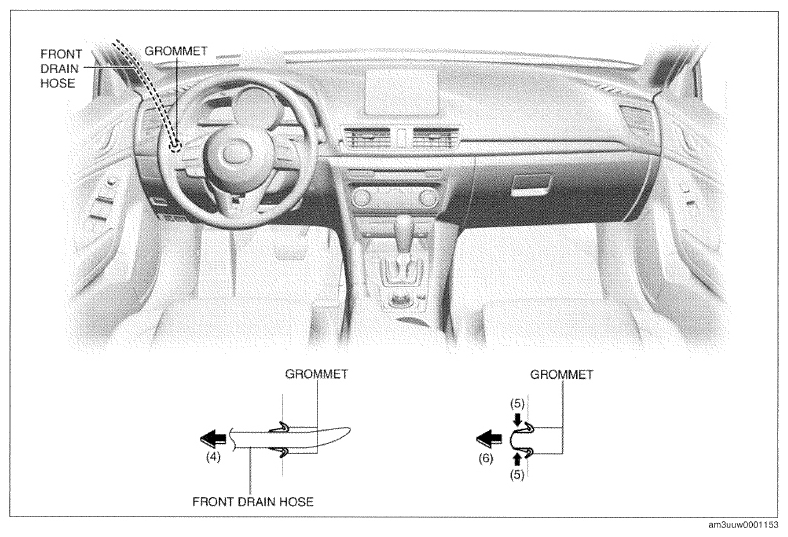

    Fig 4: Removing Front Drain Hose
    G09784032Courtesy of MAZDA MOTORS CORP.
  16. Remove the grommet in the direction of the arrow (5), (6) shown in the figure.
  17. Pull the front drain hose out from the A-pillar side.
  18. Install in the reverse order of removal.

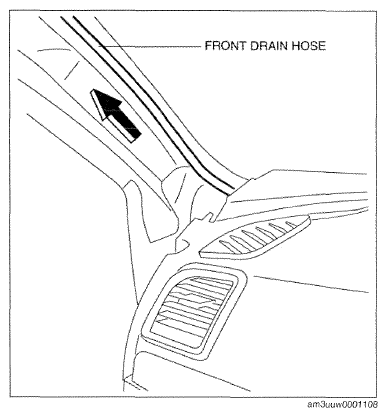

    Fig 5: Pulling Front Drain Hose Out From A-Pillar
    G09784033Courtesy of MAZDA MOTORS CORP.
