Cd Player Removal

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Shift the selector lever from the P position to the D position (ATX).
  3. Insert the SSTs (removing tool) into the positions shown in the figure and disengage the CD player from the front console.

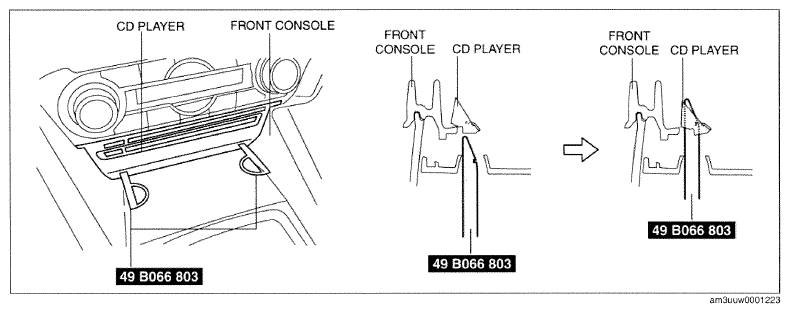

    Fig 1: Inserting SSTs (Removing Tool) Into Positions
    G09784162Courtesy of MAZDA MOTORS CORP.
  4. Pull the SSTs (removing tool) in the direction shown in the figure and remove the CD player from the front console.

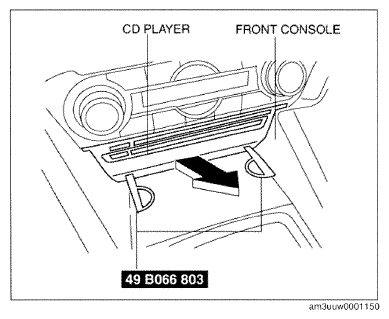

    Fig 2: Removing CD Player From Front Console
    G09784163Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.
  6. Remove the CD player.
    Fig 3: Identifying CD Player And Connector
    G09784164Courtesy of MAZDA MOTORS CORP.
  7. While pulling the SSTs (removing tool) in the direction of arrow (2) shown in the figure, press the CD player spring in the direction of arrow (1) shown in the figure.

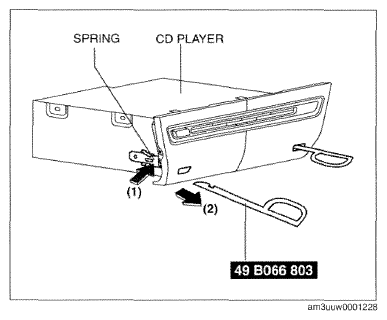

    Fig 4: Pressing CD Player Spring
    G09784165Courtesy of MAZDA MOTORS CORP.
