Rear Console Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Open the rear console lid.

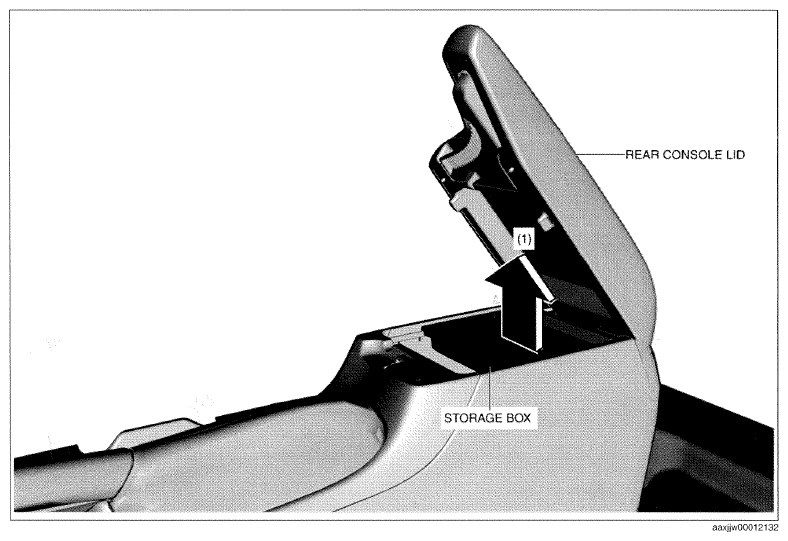

    Fig 1: Opening Rear Console Lid
    G09772298Courtesy of MAZDA MOTORS CORP.
  3. Remove the storage box in the direction of the arrow (1) shown in the figure.
  4. Remove the console mat.

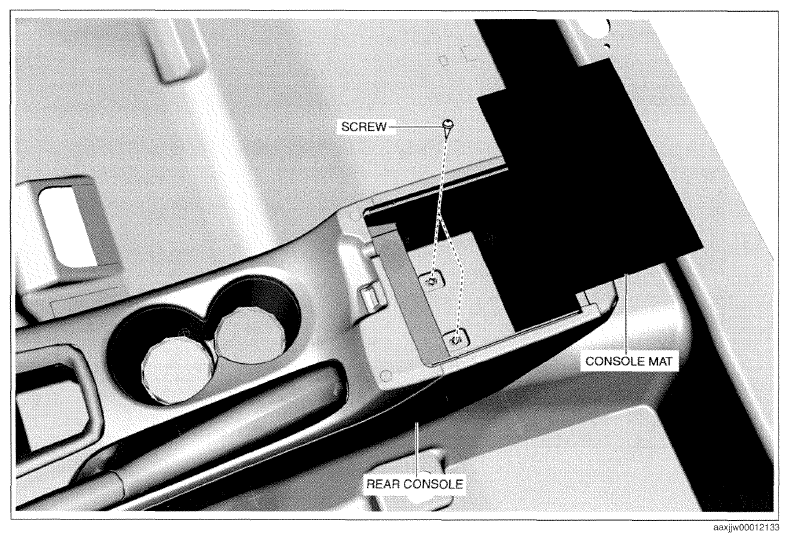

    Fig 2: Identifying Console Mat
    G09772299Courtesy of MAZDA MOTORS CORP.
  5. Remove screws.
  6. Remove the upper panel. (See UPPER PANEL REMOVAL ) (See UPPER PANEL INSTALLATION .)
  7. Pull the console-up in the direction of the arrow (2) and remove it while detaching clips A, guides A.

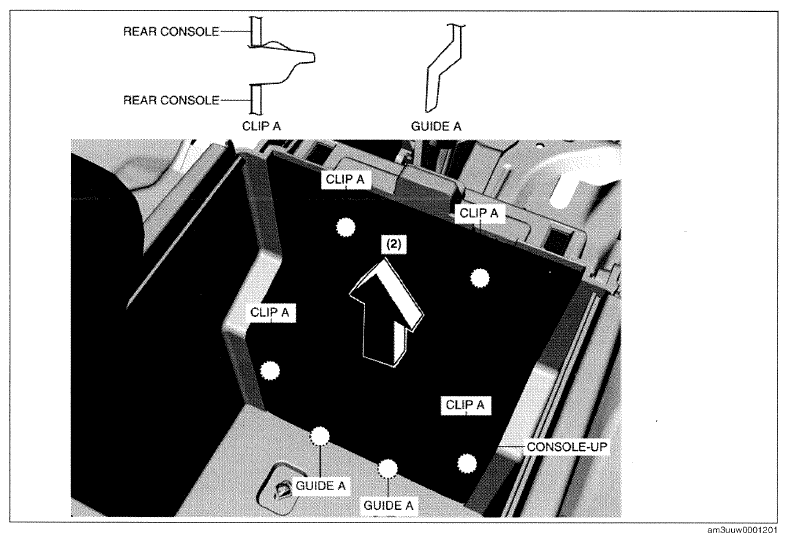

    Fig 3: Pulling Console-Up
    G09772300Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the auxiliary jack/USB port/SD card slot hub connector, (with center display and with CD player)
  9. Disconnect the auxiliary jack/USB port connector, (without center display and with CD player)
  10. Disconnect the center accessory socket connector.
  11. Pull the rear console in the direction of the arrow (3) and remove it from the front console while detaching clips B, guides B.
    Fig 4: Pulling Rear Console
    G09772301Courtesy of MAZDA MOTORS CORP.
  12. Remove the rear console in the direction of the arrow (4) shown in the figure.
    Fig 5: Removing Rear Console
    G09772302Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
