Front Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the shaded area shown in the figure, detach tab A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure then detach the hook A, clip A, and pin A while pulling in the direction of the arrow (2).

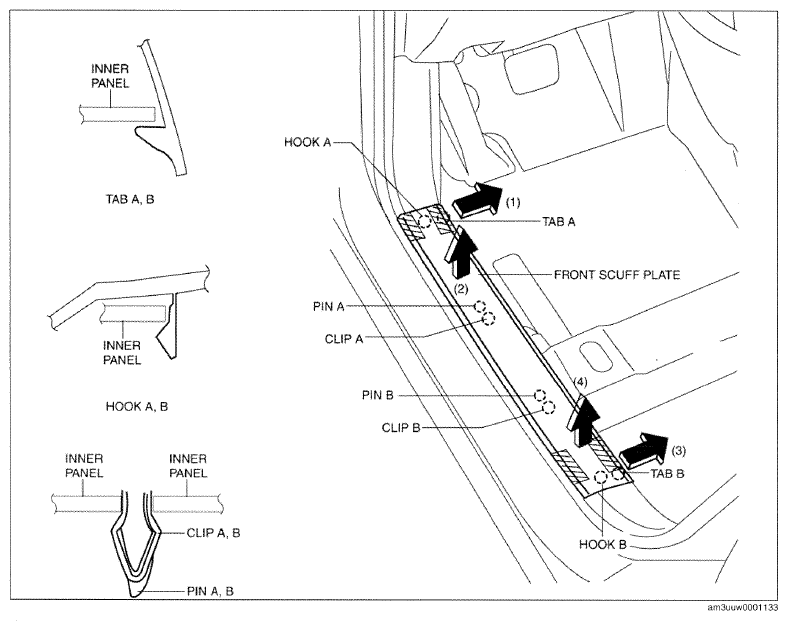

    Fig 1: Pulling Front Scuff Plate
    G09772338Courtesy of MAZDA MOTORS CORP.
  2. Grasp the shaded area shown in the figure, detach tab B while pulling the front scuff plate in the direction of the arrow (3) shown in the figure, then detach the hook B, clip B and pin B while pulling in the direction of the arrow (4).
  3. Install in the reverse order of removal.
