Rear Suspension: Knuckle: Installation

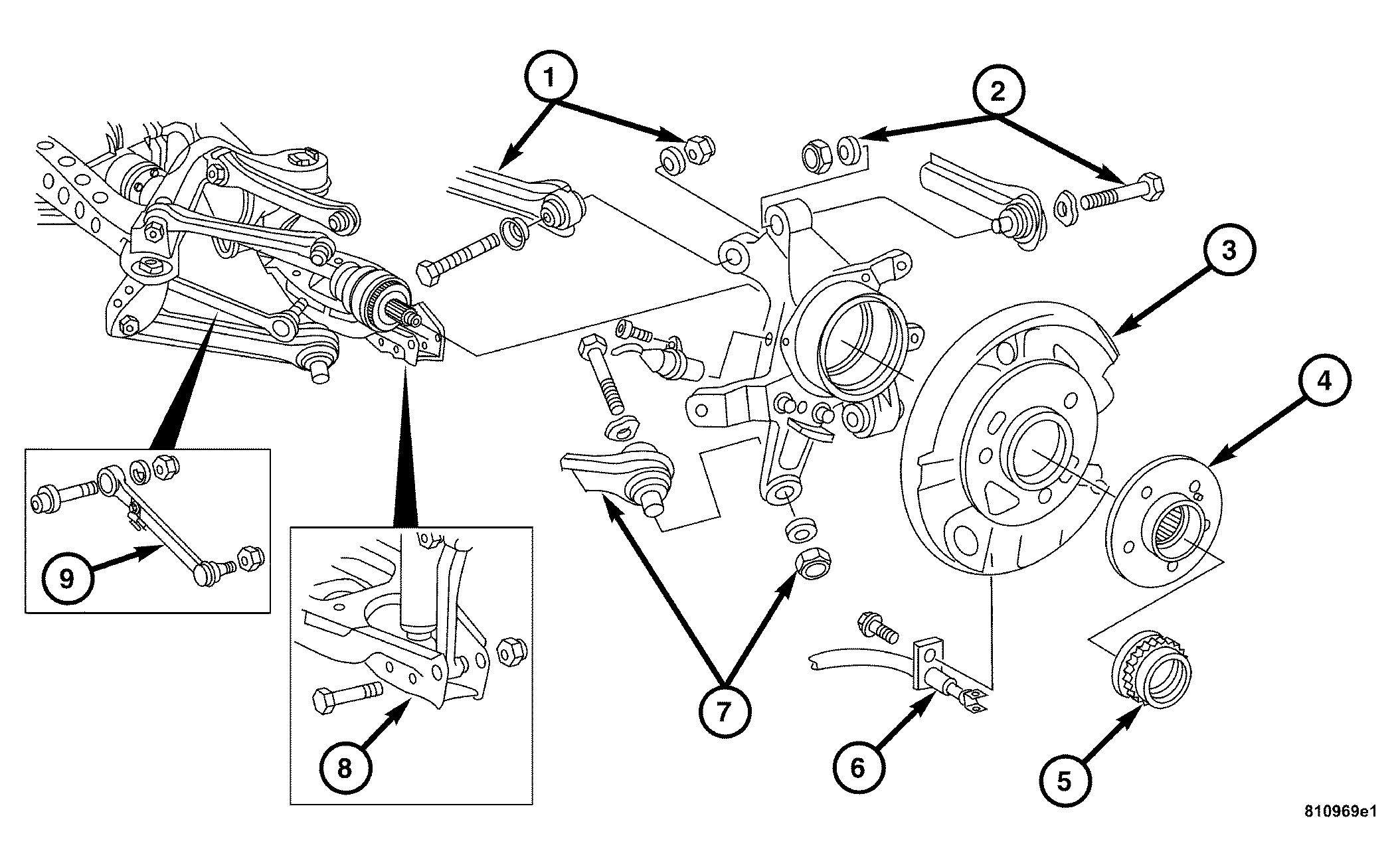

Fig 1: Locating Components At Knuckle

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRAILING LINK

2 - CAMBER STRUT

3 - DUST SHIELD

4 - HUB

5 - AXLE NUT

6 - PARKING BRAKE CABLE

7 - TRACK BAR

8 - LOWER CONTROL ARM

9 - LATERAL LINK

Fig 2: Locating Camber Strut Bolts

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: The rear axle halfshaft must be horizontal when tightening all nuts and bolts.

Install the knuckle to the vehicle.
Install the trailing link, nuts and bolts (1-2). (Refer to SUSPENSION/REAR/TOE LINK - INSTALLATION) .

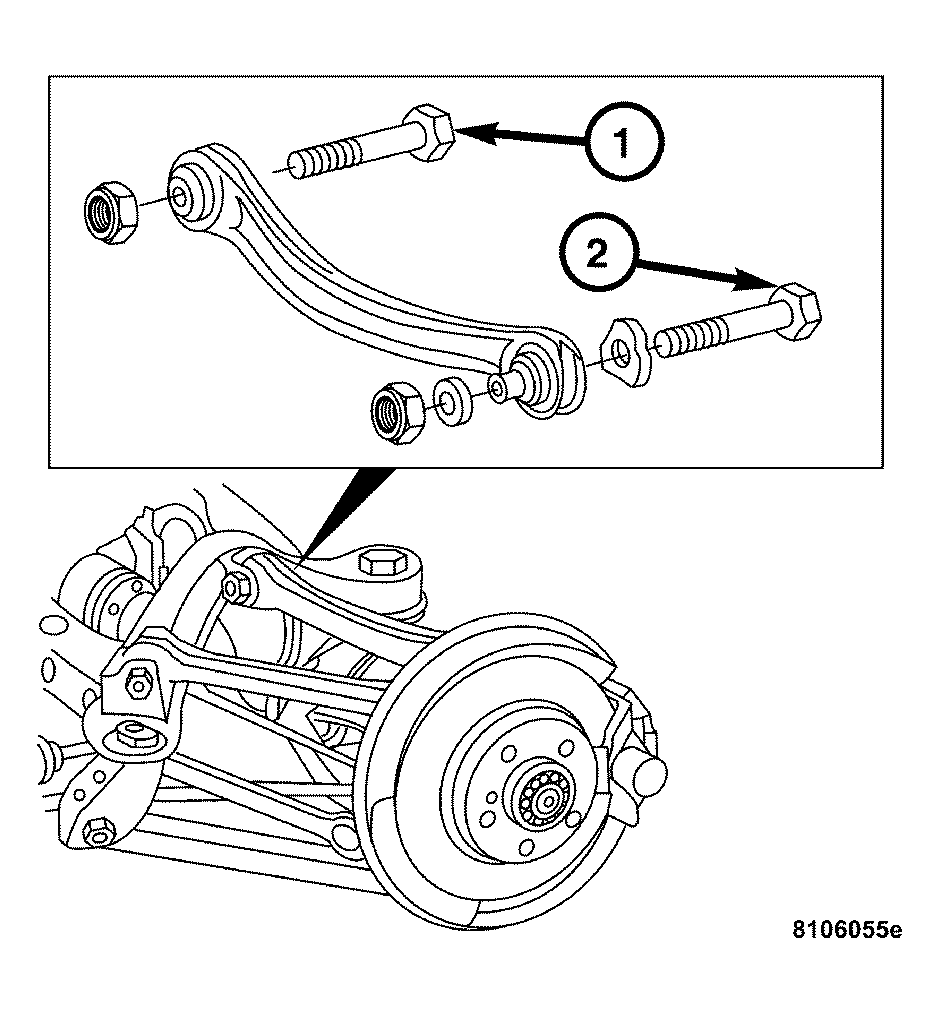

Fig 3: Locating Trailing Link Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the trailing link nuts and bolts (1-2). (Refer to SUSPENSION/REAR/TRAILING LINK - INSTALLATION) .

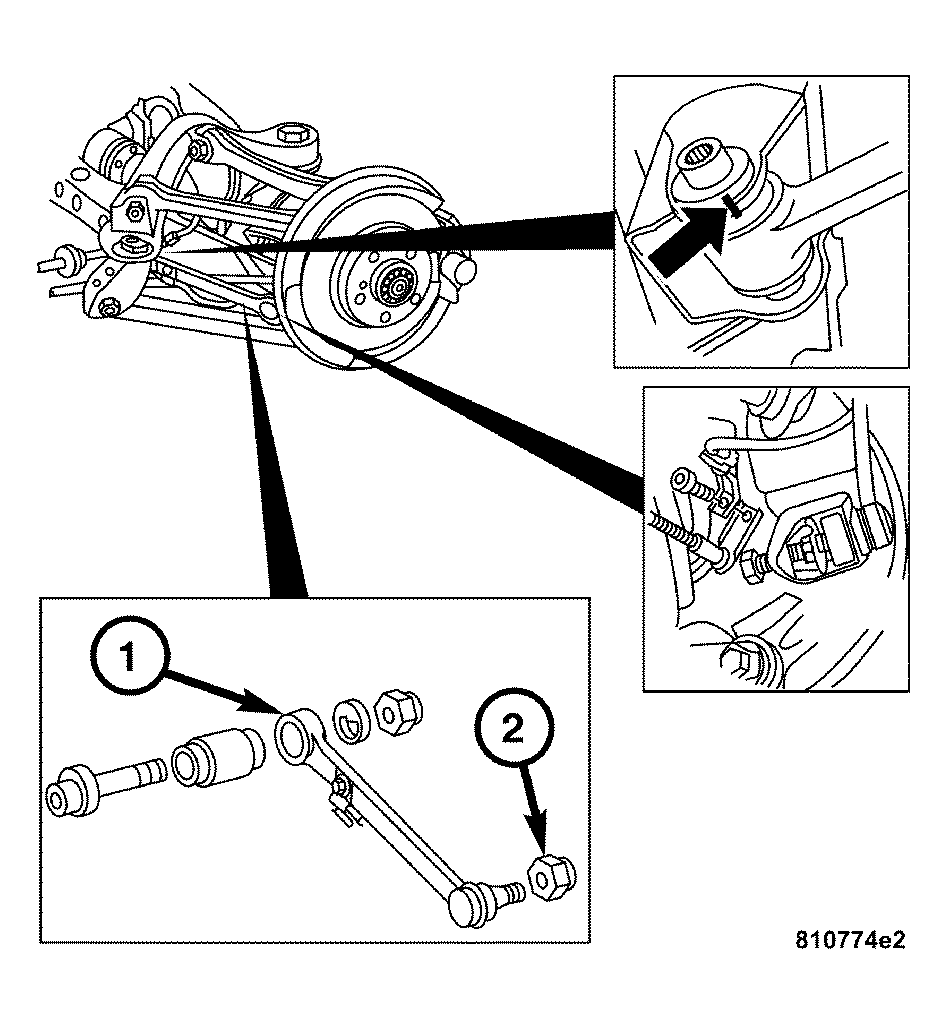

Fig 4: Locating Lateral Link & Ball Joint Nut
Courtesy of DAIMLERCHRYSLER CORP.
Install the lateral link nuts and bolts (1-2). (Refer to SUSPENSION/REAR/LATERAL LINK - INSTALLATION) .

Fig 5: Locating Track Bar Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the track bar nuts and bolts (1-2). (Refer to SUSPENSION/REAR/TRACK BAR - INSTALLATION) .
Install the lower control arm. (Refer to SUSPENSION/REAR/LOWER CONTROL ARM - INSTALLATION) .

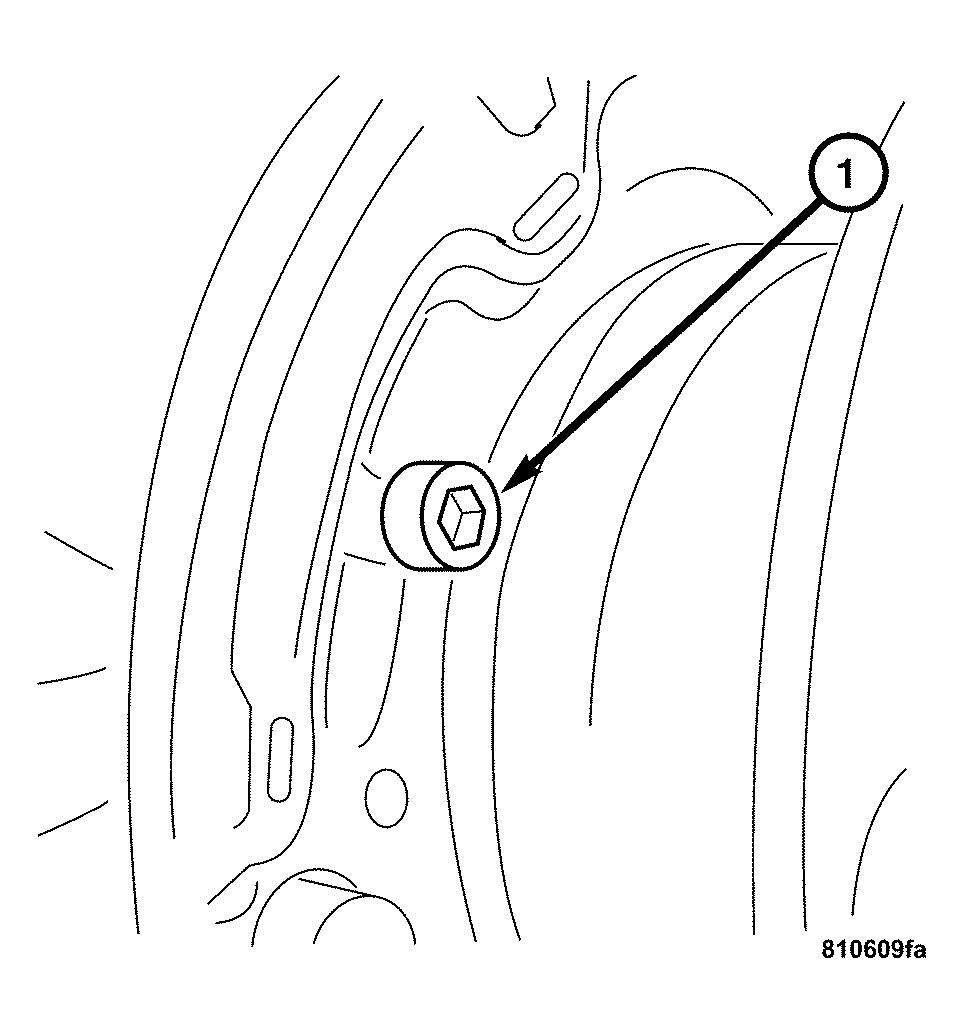

Fig 6: Locating Rear Disc Brake Dust Shield Hex Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear disc brake dust shield by installing the bolts (1) to the rear hub assembly. Tighten the bolts to 10 N.m (89 in. lbs.).

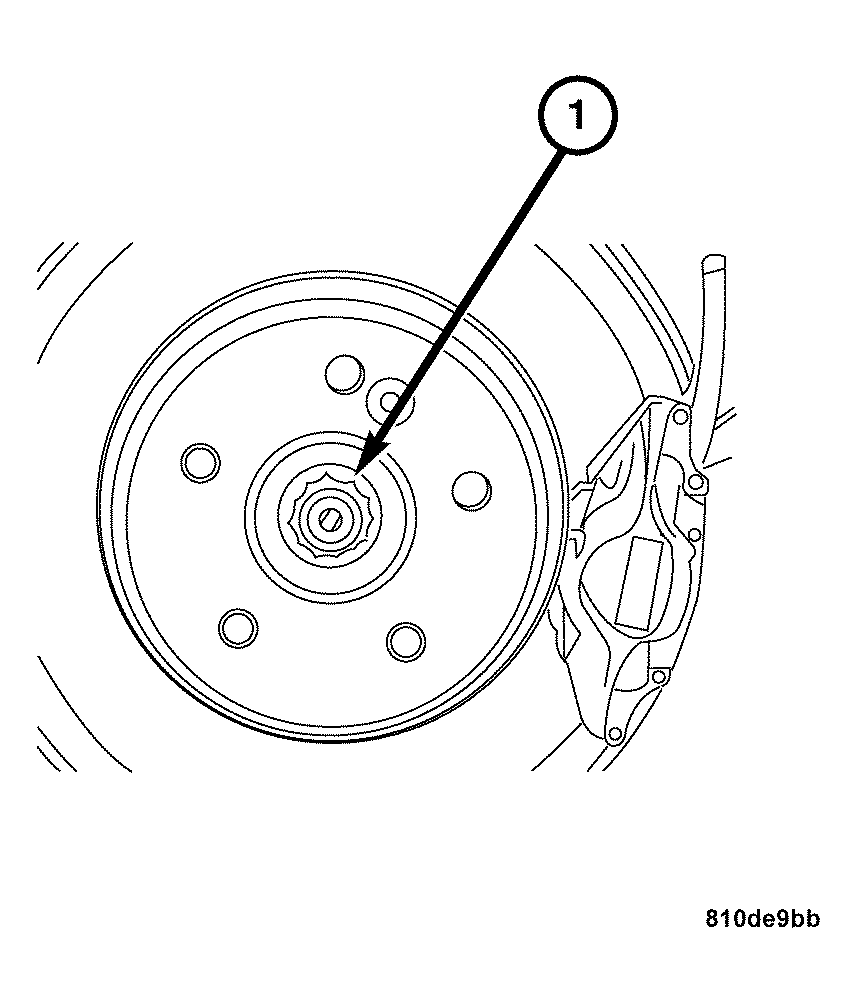

Fig 7: Locating Rear Halfshaft Nut
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear axle halfshaft to the rear hub assembly.
NOTE: A new halfshaft outer retaining nut must be used.
Install the rear axle halfshaft outer retaining nut (1). Tighten the halfshaft nut to 220 N.m (164 ft. lbs.).

Fig 8: Locating Rear Wheel Speed Sensor & Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear Wheel Speed Sensor (2). (Refer to BRAKES/ELECTRICAL/REAR WHEEL SPEED SENSOR - INSTALLATION) .

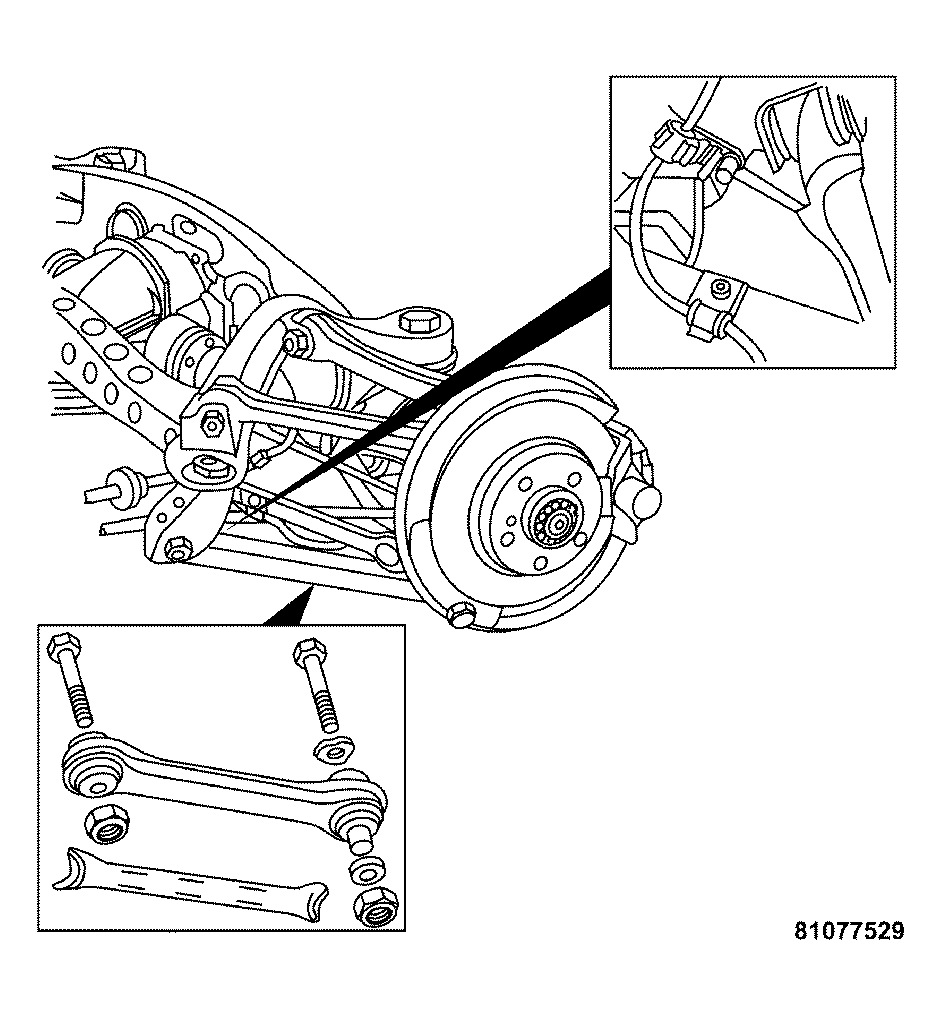

Fig 9: Locating Parking Brake Cable
Courtesy of DAIMLERCHRYSLER CORP.
Install the parking brake cable (2). (Refer to BRAKES/PARKING BRAKE/CABLES - INSTALLATION) .

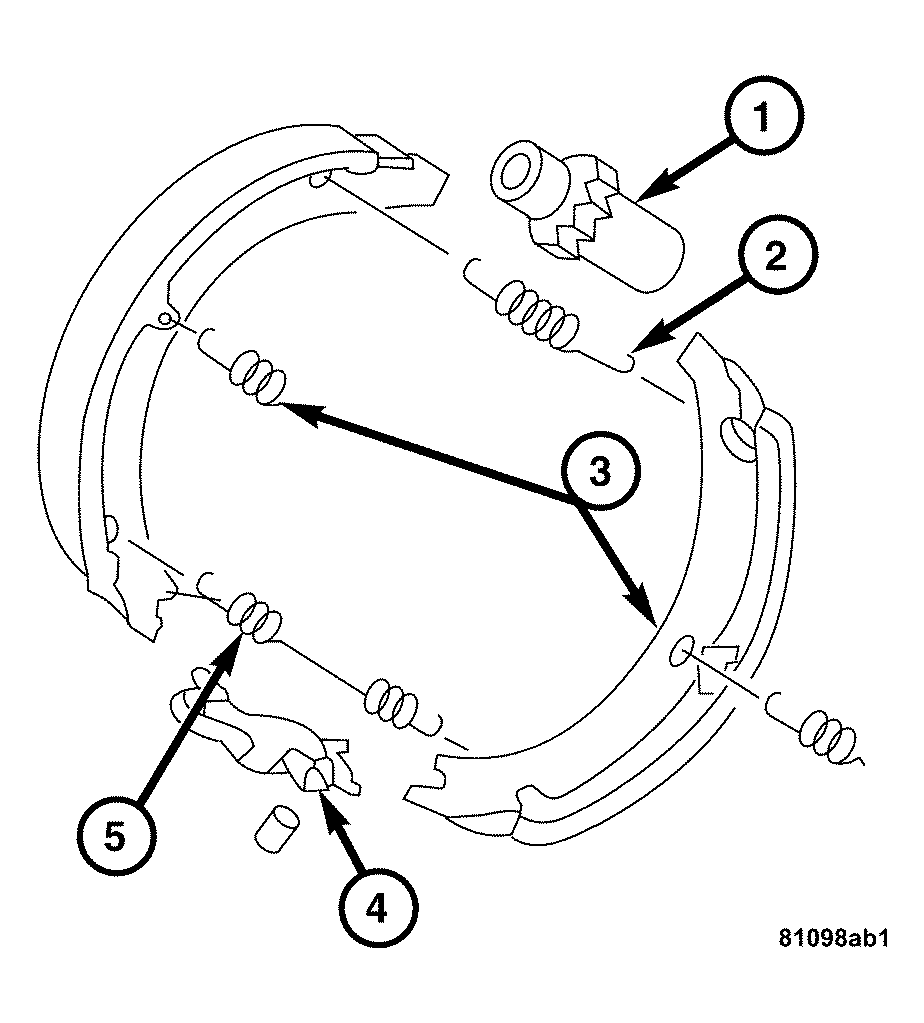

Fig 10: Identifying Parking Brake Shoe Assembly Components
Courtesy of DAIMLERCHRYSLER CORP.
Install the parking brake shoe assembly (1-5). (Refer to BRAKES/PARKING BRAKE/SHOES - INSTALLATION) .

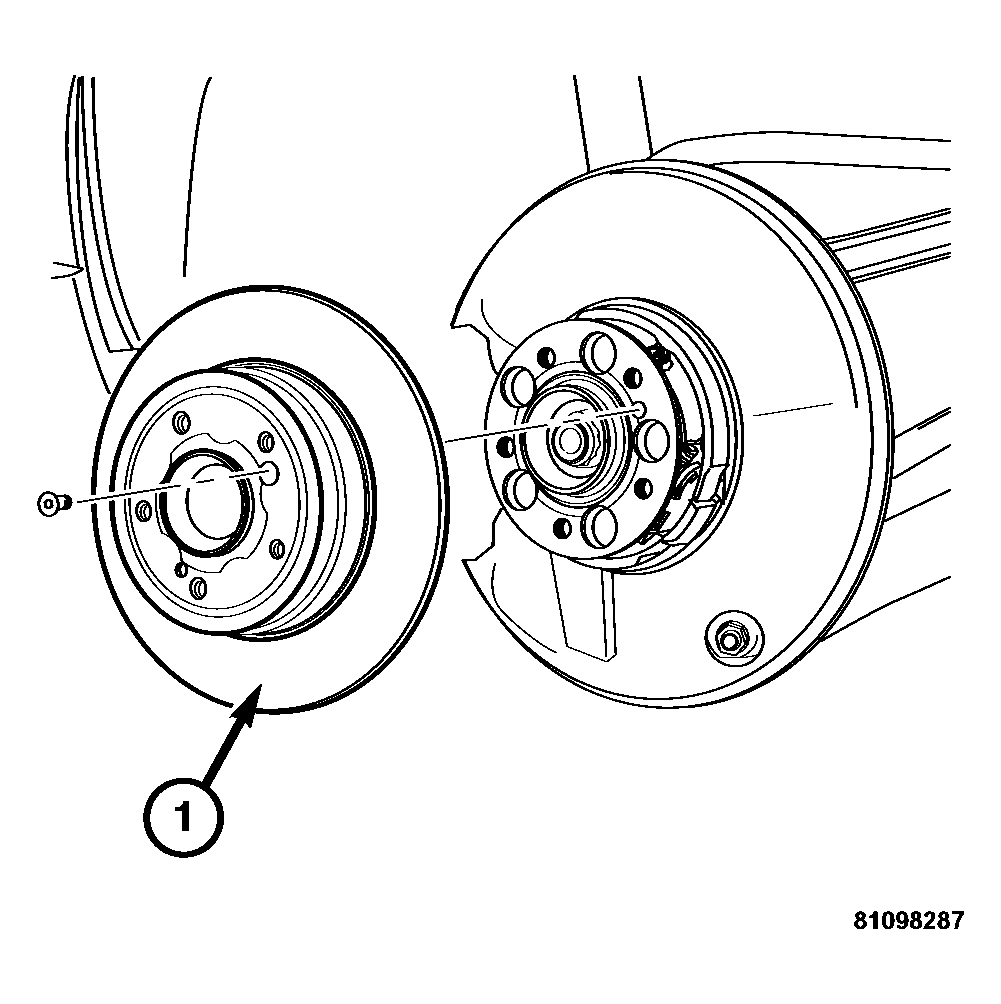

Fig 11: Locating Rear Disc Brake Rotor
Courtesy of DAIMLERCHRYSLER CORP.
Install the disc brake rotor (1). (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION) .

Fig 12: Locating Rear Disc Brake Caliper Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear disc brake caliper and bolts (1). (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION) .
Install the wheel and tire assembly. (Refer to TIRES/WHEELS - STANDARD PROCEDURE) .
Check vehicle alignment. (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
