Oil Pump: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Prime oil pump before installation by filling rotor cavity with clean engine oil.

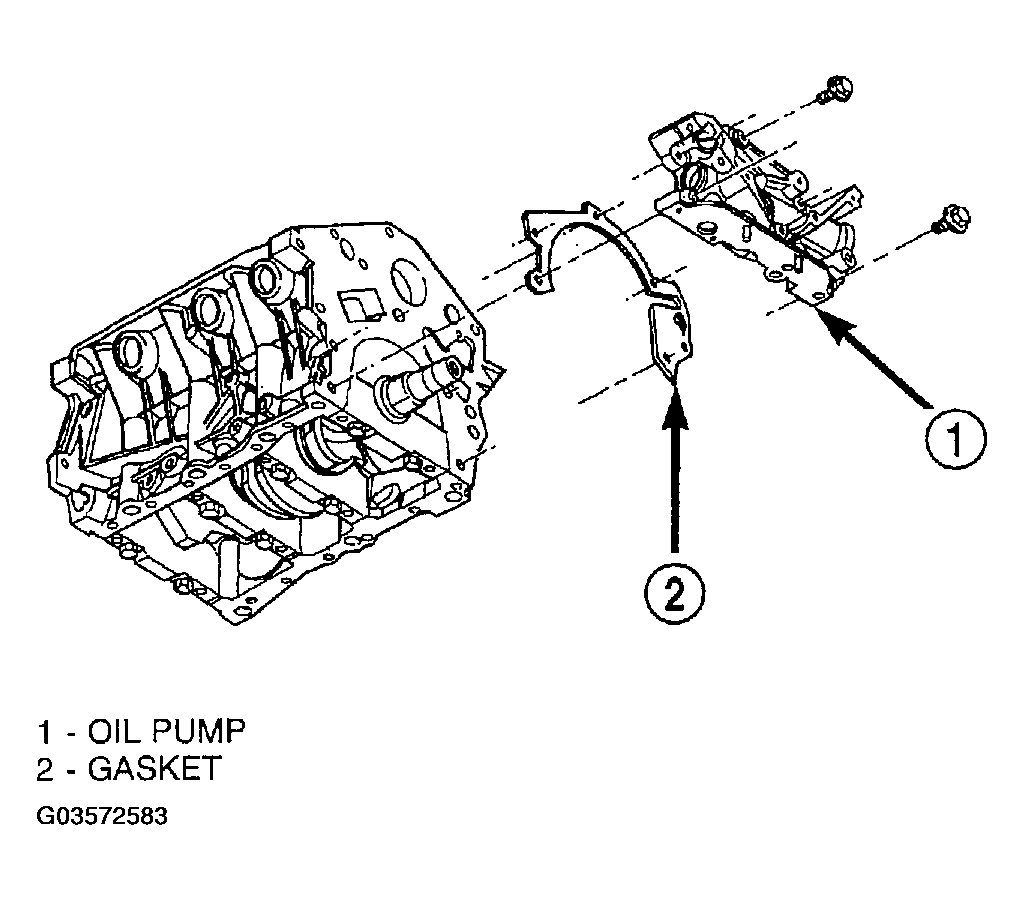

  2. Install oil pump and gasket carefully over the crankshaft. Position pump onto block and tighten bolts to 28 N.m (250 in. lbs.) (Figure ).
  3. Install new O-ring on oil pickup tube.
  4. Install oil pickup tube.
  5. Install oil pan. (Refer to INSTALLATION  )
  6. Install crankshaft sprocket. (Refer to INSTALLATION  )
  7. Install timing belt. (Refer to INSTALLATION  )
  8. Install the timing belt covers. (Refer to TIMING BELT/CHAIN COVER(S) - INSTALLATION  )
  9. Install the crankshaft vibration damper. (Refer to INSTALLATION  )
  10. Install the accessory drive belts. (Refer to DRIVE BELTS )
  11. Fill the cooling system. (Refer to STANDARD PROCEDURE - COOLING SYSTEM FILLING )
  12. Fill engine crankcase with proper oil to the correct level.
