Vibration Damper: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig 1 ).

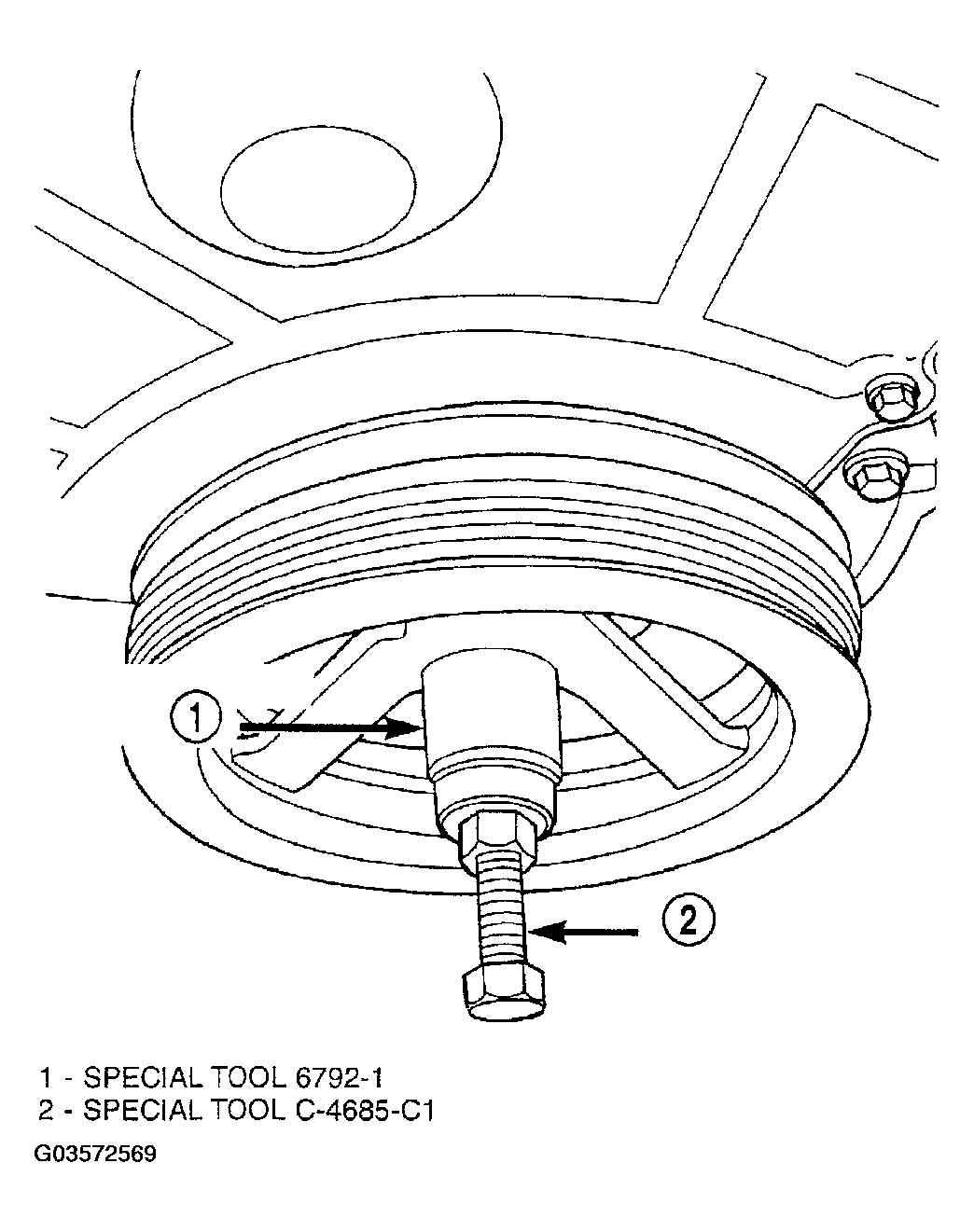

    Fig 1: Installing Crankshaft Damper
    G03572569Courtesy of DAIMLERCHRYSLER CORP.
  2. Install vibration damper bolt. Torque bolt to 115 N.m (85 ft. lbs.).
  3. Install accessory drive belt (Refer to DRIVE BELTS ).
  4. Install the accessory drive belt splash shield and right front wheel.
  5. Lower vehicle.
  6. Connect negative battery cable.
